q14 | WiFi 6E Mesh Router System, 5.4Gbps speed

"Q14 provides the best performance, range, and stability I have ever gotten from a WiFi router." –Lynn

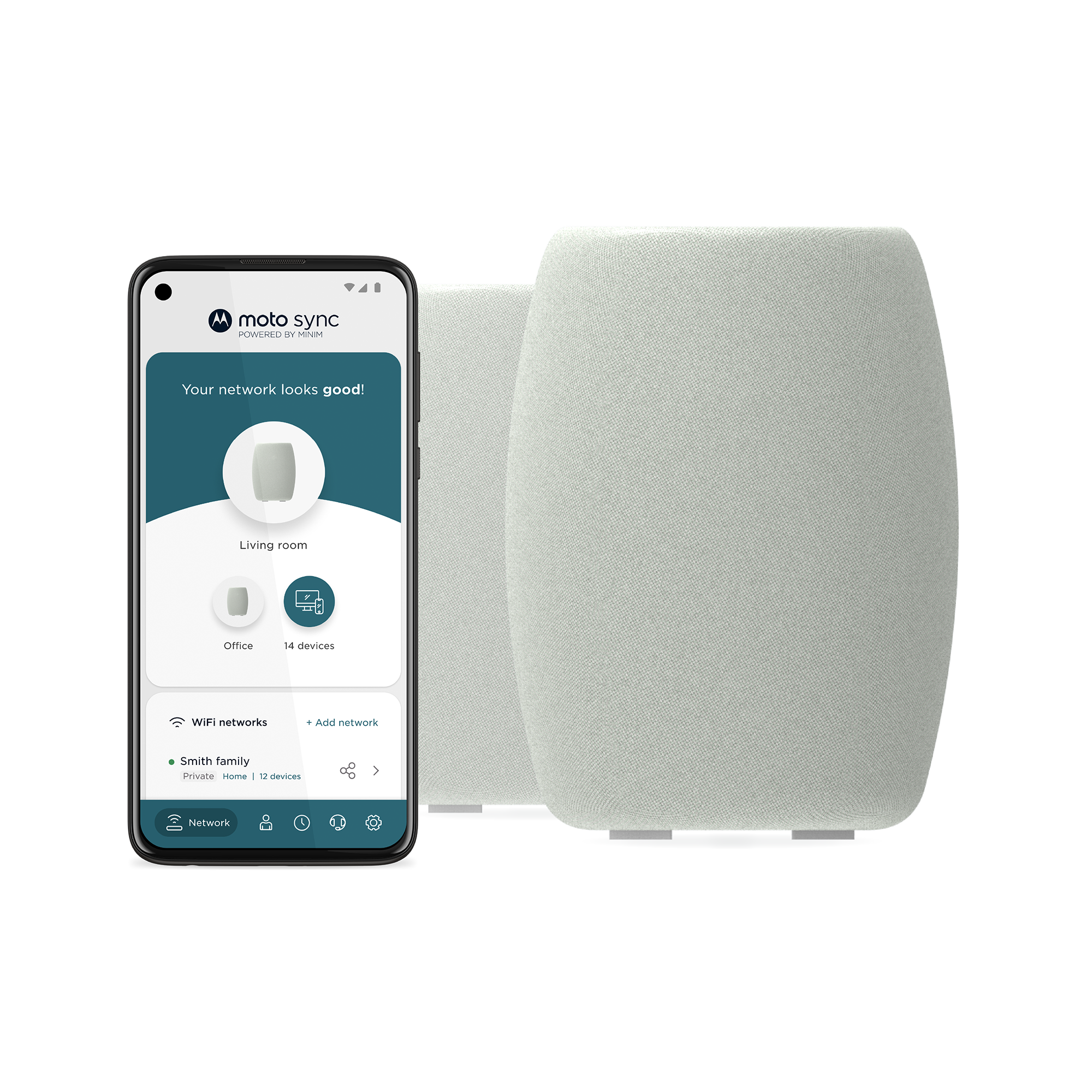

Two Motorola Q14 mesh router/extender devices standing along with a smartphone showing the motosync app

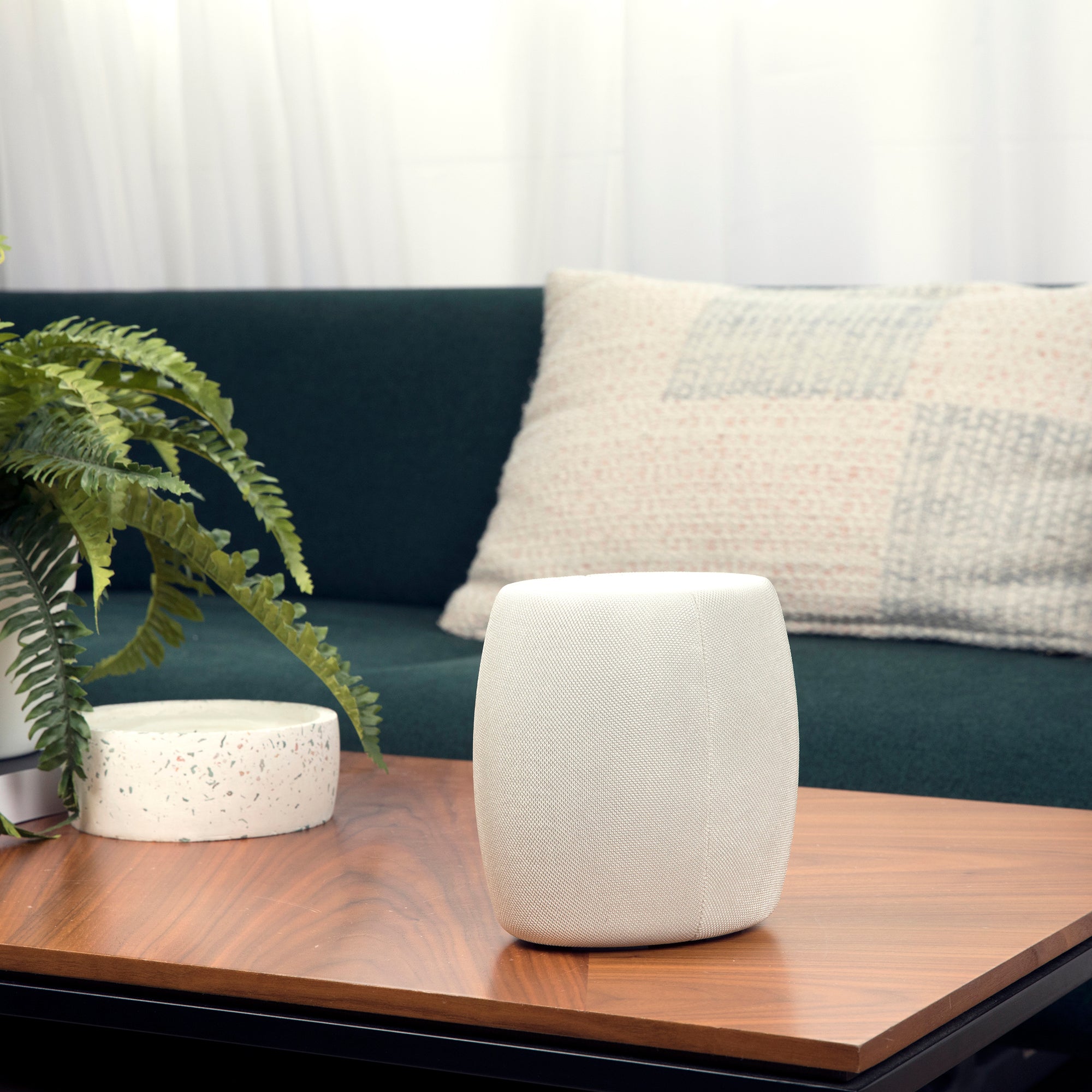

Side view of a Motorola Q14 mesh router/extender device on a living room coffee table

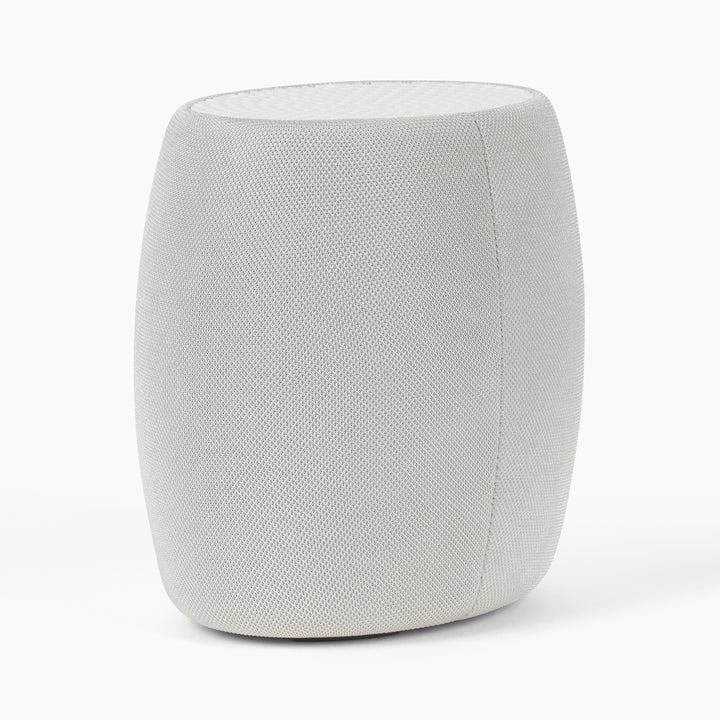

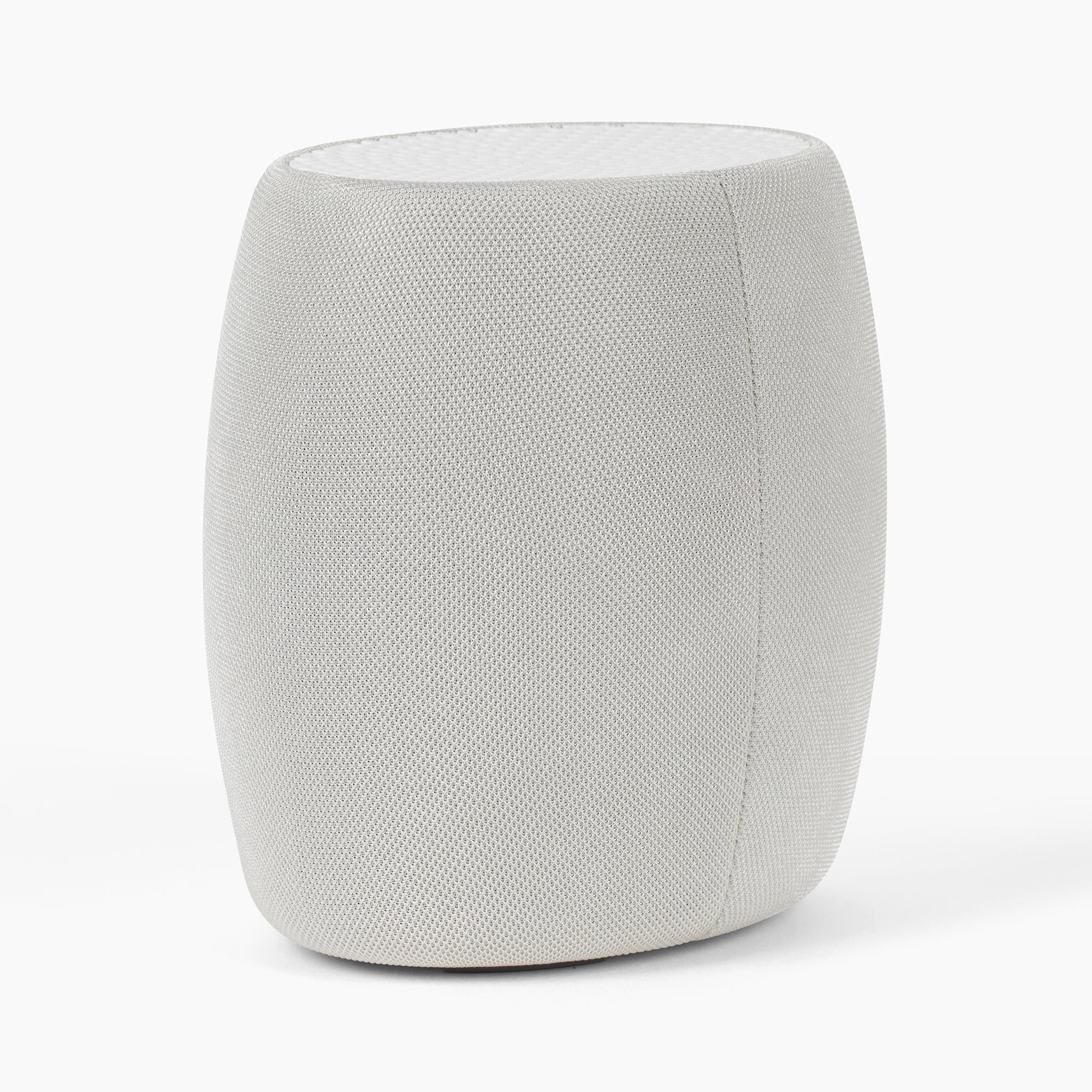

Motorola Q14 mesh router/extender device side angle view, isolated on a white background

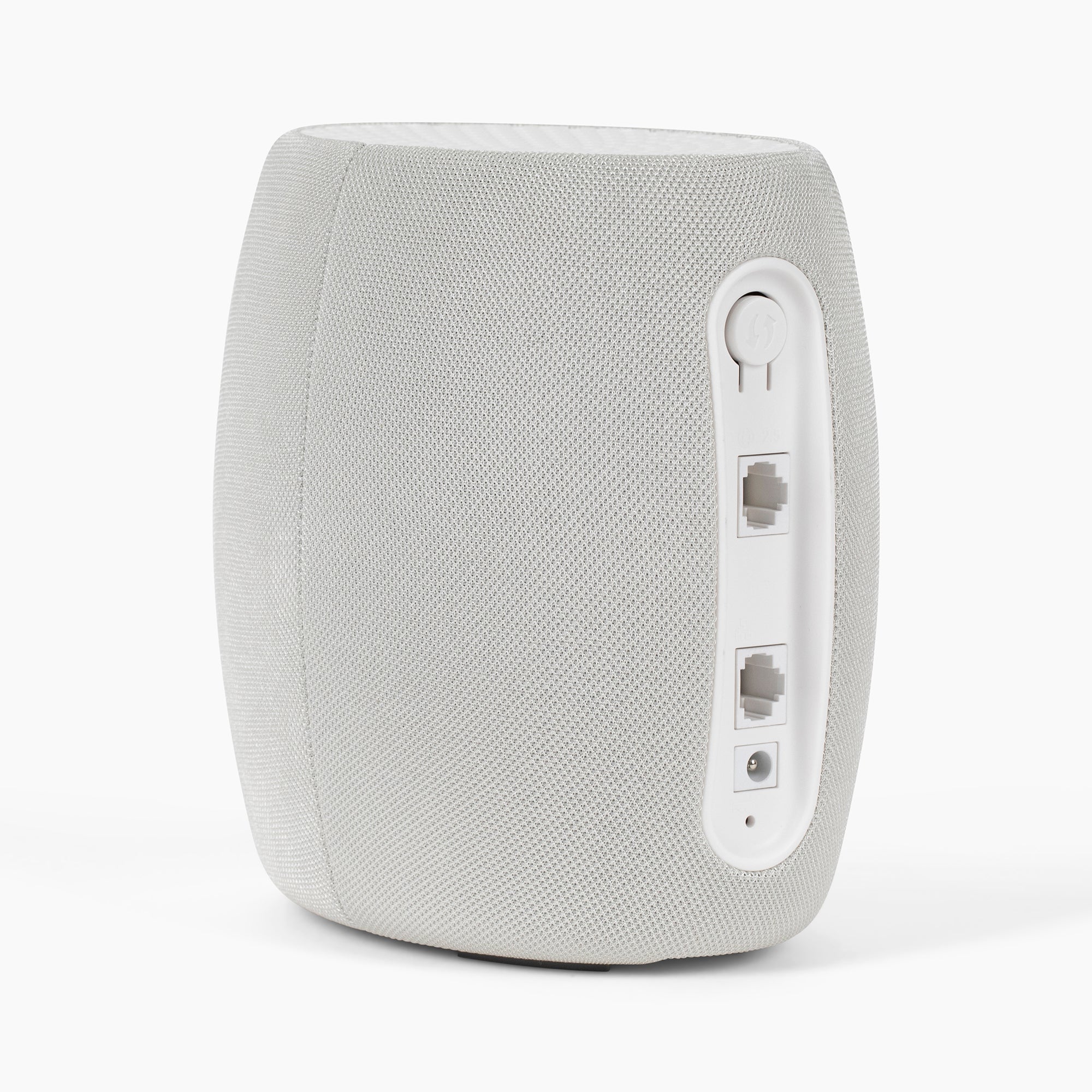

Motorola Q14 mesh router/extender device back angle view, isolated on a white background

q14 | WiFi 6E Mesh Router System, 5.4Gbps speed

WiFi 6E AX5400 - Connect 100+ Devices
Built in security, parental controls w/ motosync
Compatible with any type of broadband

$149.99 $429.99 saving $280.00

WiFi 6E AX5400 - Connect 100+ Devices
Built in security, parental controls w/ motosync
Compatible with any type of broadband

"Q14 provides the best performance, range, and stability I have ever gotten from a WiFi router." –Lynn

Model

2-Pack covers 3500 sqft ($184.99)

3-Pack covers 5000 sqft ($249.99)

Quantity

Description
Tech Specs

NOTE: The q14 is an independent WiFi network and can only mesh with other q14 routers. It is not a universal extender.

unprecedented speed

Supports WiFi speeds up to 5.4 Gbps for over 100 connected devices. Works with fast home Internet plans without bottlenecking your speeds. A 2.5 Gbps WAN port enables true multi-gigabit speed.

next-gen WiFi 6E technology

WiFi 6E provides more capacity and lower latency—ideal for VR/AR and 8K streaming. New 6GHz band enables the latest WiFi 6E devices to connect at their full potential.

expandable mesh coverage

Say goodbye to dead zones and buffering. Blanket your whole home in fast, reliable WiFi up to 5,000 sqft.*

powerful app

Easily set up, manage, and secure your home network with the motosync app. Parental controls, threat scans, and ad blocking included.

tons of support

Comes with a 2-year warranty and free support from our US-based technicians.

WARNING: This product can expose you to chemicals including styrene, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.

*Actual internet speeds depend on your ISP service plan. Maximum WiFi transmission rates are the physical rates derived from the 802.11 specifications. WiFi coverage range is derived from testing under ideal conditions. Phone not included.
PER DEVICE

WiFi Specs
- WiFi 6E Tri-band concurrent 2:2:2 (802.11ax)
- AXE5400
- Six (6) internal single-band antennas
- IEEE 802.11 a/b/g/n/ac/ax, 2x2 MU-MIMO
- WiFi 6 Performance (OFDMA, Beamforming, 1024-QAM)
- Transmit Power (conducted):
  - 2.4GHz: up to 27 dBm
  - 5GHz: up to 25 dBm
  - 6GHz: up to 23.5 dBm
- Speed:
  - Up to 574 Mbps** at 2.4 GHz
  - Up to 2,400 Mbps** at 5.0 GHz
  - Up to 2,400 Mbps** at 6.0 GHz
- Band Channels and Frequencies:
  - 2.4GHz: 2400-2473 MHz (CH 1-11, plus 12/13)†
  - 5GHz: 5150-5835 MHz (CH 36-165)† including DFS
  - 6GHz: 6105-7125 MHz (CH 33-233)†
- Coverage:
  - 1x Q14: 2,000 sqft.*
  - 2x Q14: 3,500 sqft.*
  - 3x Q14: 5,000 sqft.*
- Guest network support
Device management
- Band Steering
- Seamless AP Roaming
- Wireless Airtime Fairness (ATF)
- Smart Backhaul (Wired or Wireless)
- MU-MIMO
- Explicit Beamforming
Network management
- Optimized WiFi Channel Selection
- WPA2/WPA3 wireless security
- DHCP, Static IP, and PPPoE WAN support
- Firewall with DoS Attack Protection, SPI
- 64 client devices per WiFi band; up to 245 total client devices
Physical interface
- One (1) 2.5GbE Ethernet WAN/LAN port with 100/1000/2500BT auto negotiation
- One (1) 1GbE Ethernet LAN port with 10/100/1000BT auto negotiation
- AC Power input port
- Reset button
- WPS button
- Front Status LED: Power, WiFi, Internet
- Dimensions: 6.3” H x 6.1” D x 4.75” W
- Weight: 24.4 oz
- Ruggedized 4 kV surge protection
Accessories
- 12VDC, 2A, 24W AC adapter
- White 1.5m Cat 6 Ethernet cable
- Quick start guide
- motosync app
Certifications
- FCC part 15B, 15C, 15E, MPE, DFS, IEC 62368 with NRTL safety mark, CE
BUTTONS AND PORTS

WPS button
- Press to automatically connect wireless devices, without needing to enter the network password
WAN/LAN port
- Router: connect the Ethernet cable from this port to your internet device (e.g. modem)
- Extender: second LAN port to connect wired devices
LAN Port
- Connect wired devices
Power input
- Connect to the supplied power adapter
Reset button
- Press and hold for 10 seconds to reset the Q14 device to factory defaults
* WiFi coverage range is derived from testing under ideal conditions. Actual WiFi coverage may be lower due to environmental factors and client limitations.

** Maximum WiFi transmission rates are the physical rates derived from the 802.11 specifications. Actual WiFi transmission rate will be lower due to environmental factors, network conditions, and client limitations.

† Actual available channels and maximum output

PER DEVICE

WiFi Specs

WiFi 6E Tri-band concurrent 2:2:2 (802.11ax)
AXE5400
Six (6) internal single-band antennas
IEEE 802.11 a/b/g/n/ac/ax, 2x2 MU-MIMO
WiFi 6 Performance (OFDMA, Beamforming, 1024-QAM)
Transmit Power (conducted):
2.4GHz: up to 27 dBm
5GHz: up to 25 dBm
6GHz: up to 23.5 dBm
Speed:
Up to 574 Mbps** at 2.4 GHz
Up to 2,400 Mbps** at 5.0 GHz
Up to 2,400 Mbps** at 6.0 GHz
Band Channels and Frequencies:
2.4GHz: 2400-2473 MHz (CH 1-11, plus 12/13)†
5GHz: 5150-5835 MHz (CH 36-165)† including DFS
6GHz: 6105-7125 MHz (CH 33-233)†
Coverage:
1x Q14: 2,000 sqft.*
2x Q14: 3,500 sqft.*
3x Q14: 5,000 sqft.*
Guest network support

Device management

Band Steering
Seamless AP Roaming
Wireless Airtime Fairness (ATF)
Smart Backhaul (Wired or Wireless)
MU-MIMO
Explicit Beamforming

Network management

Optimized WiFi Channel Selection
WPA2/WPA3 wireless security
DHCP, Static IP, and PPPoE WAN support
Firewall with DoS Attack Protection, SPI
64 client devices per WiFi band; up to 245 total client devices

Physical interface

One (1) 2.5GbE Ethernet WAN/LAN port with 100/1000/2500BT auto negotiation
One (1) 1GbE Ethernet LAN port with 10/100/1000BT auto negotiation
AC Power input port
Reset button
WPS button
Front Status LED: Power, WiFi, Internet
Dimensions: 6.3” H x 6.1” D x 4.75” W
Weight: 24.4 oz
Ruggedized 4 kV surge protection

Accessories

12VDC, 2A, 24W AC adapter
White 1.5m Cat 6 Ethernet cable
Quick start guide
motosync app

Certifications

FCC part 15B, 15C, 15E, MPE, DFS, IEC 62368 with NRTL safety mark, CE

BUTTONS AND PORTS

WPS button

Press to automatically connect wireless devices, without needing to enter the network password

WAN/LAN port

Router: connect the Ethernet cable from this port to your internet device (e.g. modem)
Extender: second LAN port to connect wired devices

LAN Port

Connect wired devices

Power input

Connect to the supplied power adapter

Reset button

Press and hold for 10 seconds to reset the Q14 device to factory defaults

* WiFi coverage range is derived from testing under ideal conditions. Actual WiFi coverage may be lower due to environmental factors and client limitations.

** Maximum WiFi transmission rates are the physical rates derived from the 802.11 specifications. Actual WiFi transmission rate will be lower due to environmental factors, network conditions, and client limitations.

† Actual available channels and maximum output

Transform your home network in 3 easy steps

Step 1

Pick the right WiFi System

Select the right WiFi Mesh Router system for your home
Place Order
Receive in 1-4 business days

Step 2

Install using easy setup with motosync

Download motosync App
Plug in to your Modem or Broadband source
Scan QR code to install

Step 3

Enjoy Safe, Secure WiFi with no dead spots

Turn on Security Filters in App
Set Parental Controls
Browse, stream or connect using your secure network

Q14 WiFi Mesh System

The Motorola Q14 is more than just great hardware. It's powered by Minim software to provide exceptional performance, all while being protected from digital threats.

Cable modem rental fee savings chart: save up $840 ($168/year) over 5 years

Whole home WiFi coverage

Covers up to 5,000sqft under 1 WiFi Network
Faster speeds than using WiFi Extenders
No Deadlines and more reliable connection

Built in Security Protection

24/7 Scans of your network to detect malware
Alerts for threats trying to join network
Option to have isolated guest network
Included at no extra cost, competitors charge up to $99/yr for similar service

Motorola cable modem against an abstract a flowing air particles background

Create a Safe Internet for your kids

Protect your child from dangerous websites
Restrict specific websites
Monitor and limit Internet usage
Included at no charge

Connect more devices under one network

Supports over 100+ connected devices
Coverage for all smart home connections under 1 network
Automatically allocates more bandwidth to high use devices for streaming, browsing and downloads
