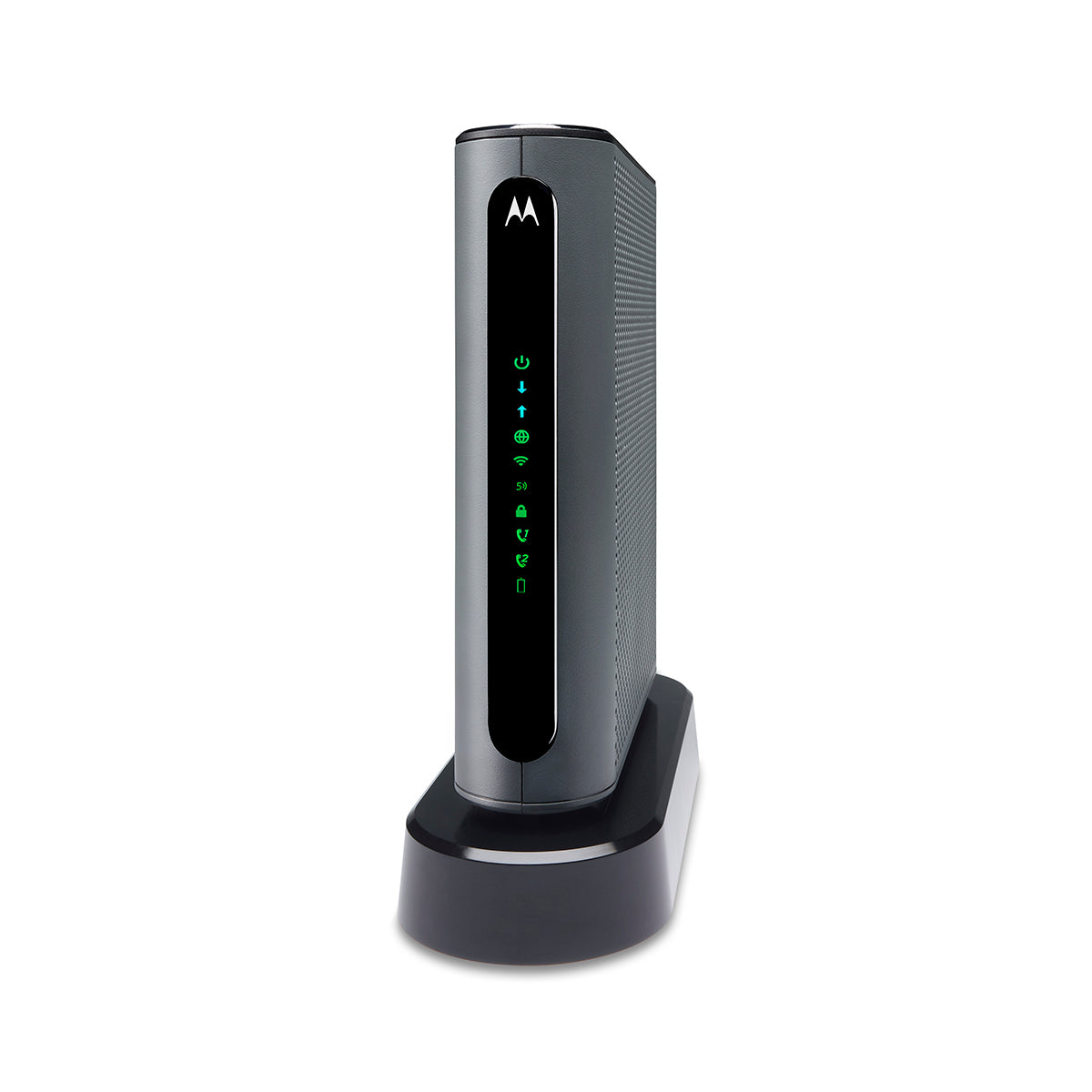

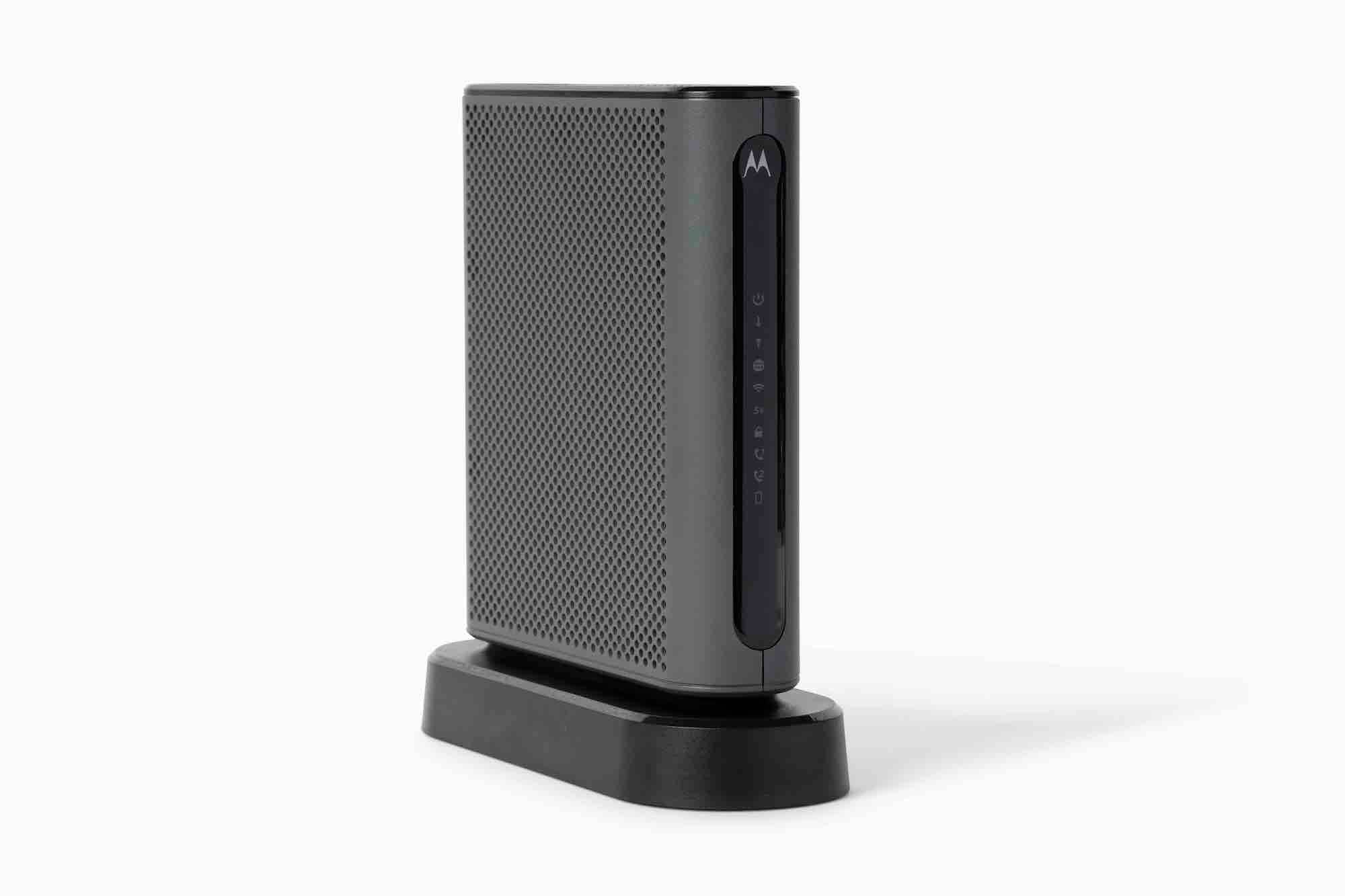

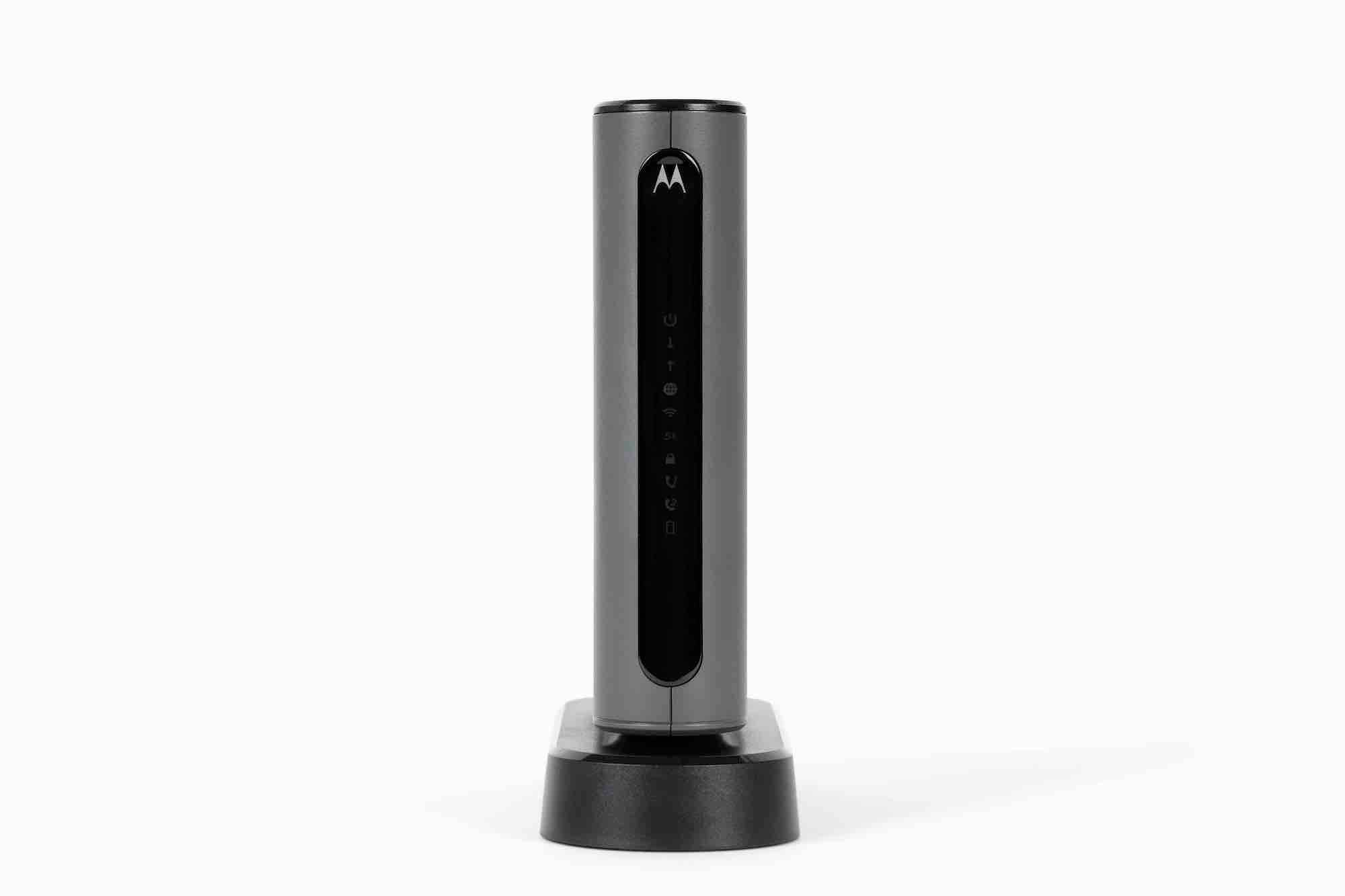

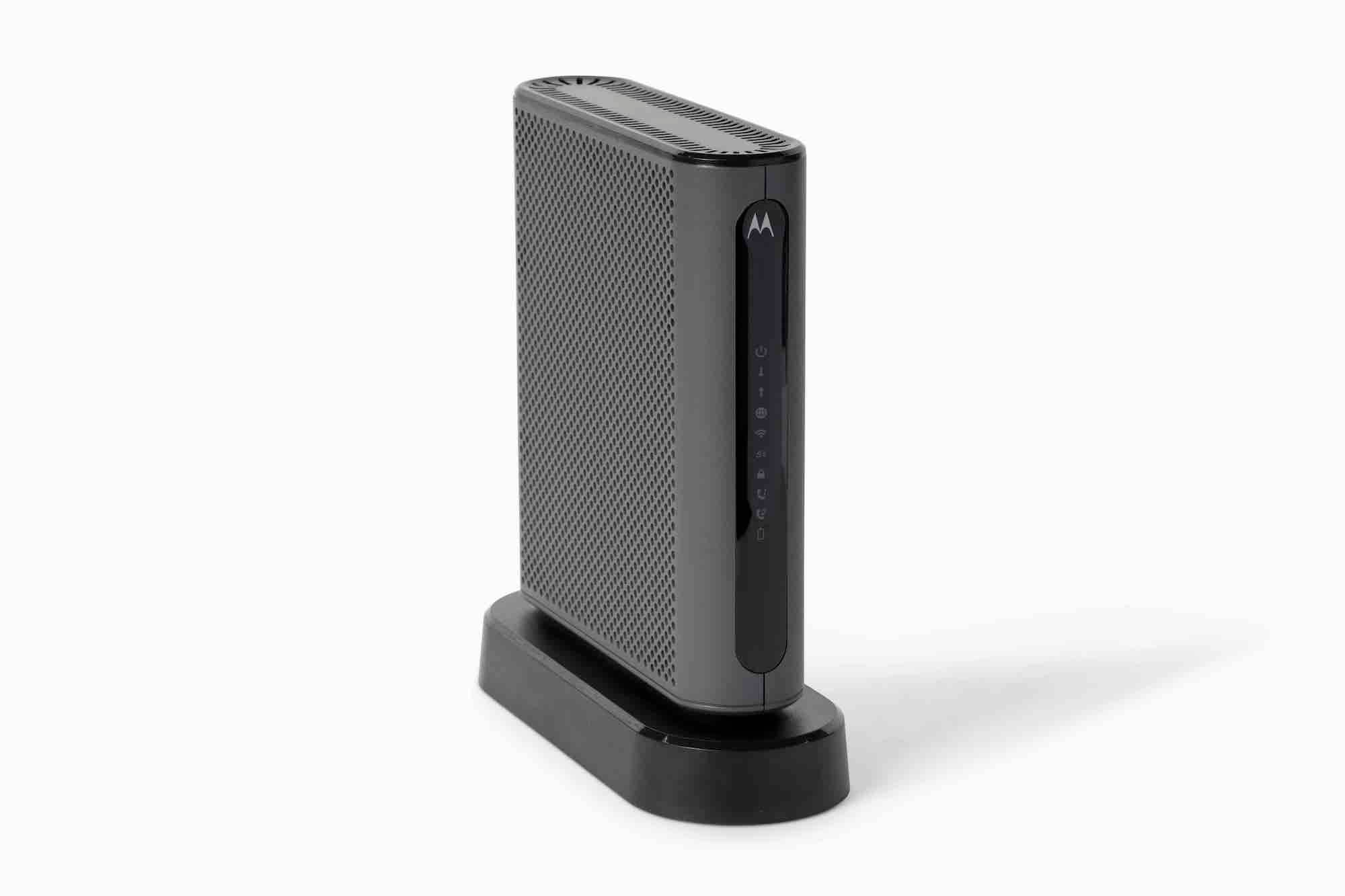

mt7711 | 840 Mbps Speed DOCSIS 3.0 Cable Modem + WiFi 5 Router - 2 Xfinity Voice Lines
"This will save us a lot of money!! No more rental fees to Comcast! And has the 2 phone jacks to support our triple play." –Clark
mt7711 | 840 Mbps Speed DOCSIS 3.0 Cable Modem + WiFi 5 Router - 2 Xfinity Voice Lines
- Speeds up to 860Mbps, WiFi 5 router
- Save up to $168* per year vs renting
- Compatible with Xfinity Voice
- Description
- Tech Specs
-
compatible with Xfinity Internet & Voice service
Certified by Comcast for Xfinity. Compatible with Xfinity Triple Play. NOT compatible with Verizon, AT&T, CenturyLink, DSL providers, DirecTV, DISH and non-Xfinity voice services.
high-speed DOCSIS 3.0 cable modem
Features 4 Gigabit Ethernet ports for wired connections. Recommended by Comcast for Xfinity Internet service speeds up to 600 Mbps.
powerful AC1900 router
Delivers up to 1900 Mbps wireless speed. Power Boost, Range Boost, and AnyBeam WiFi beamforming enable quality streaming, gaming, and connecting throughout the home.
comes with 2 phone lines
For use with Xfinity Voice service only. Enjoy crystal-clear calling and enhanced features like caller ID, call forwarding, conference calling, and more.
extreme cost savings
Save up to $168 per year on cable modem rental fees (savings described is for Comcast Xfinity service). Comes with a 2-year warranty and free support from our USA team of connectivity technicians.
motosync app
It's like having our product experts in your home with one tap using in-app live chat support.
-

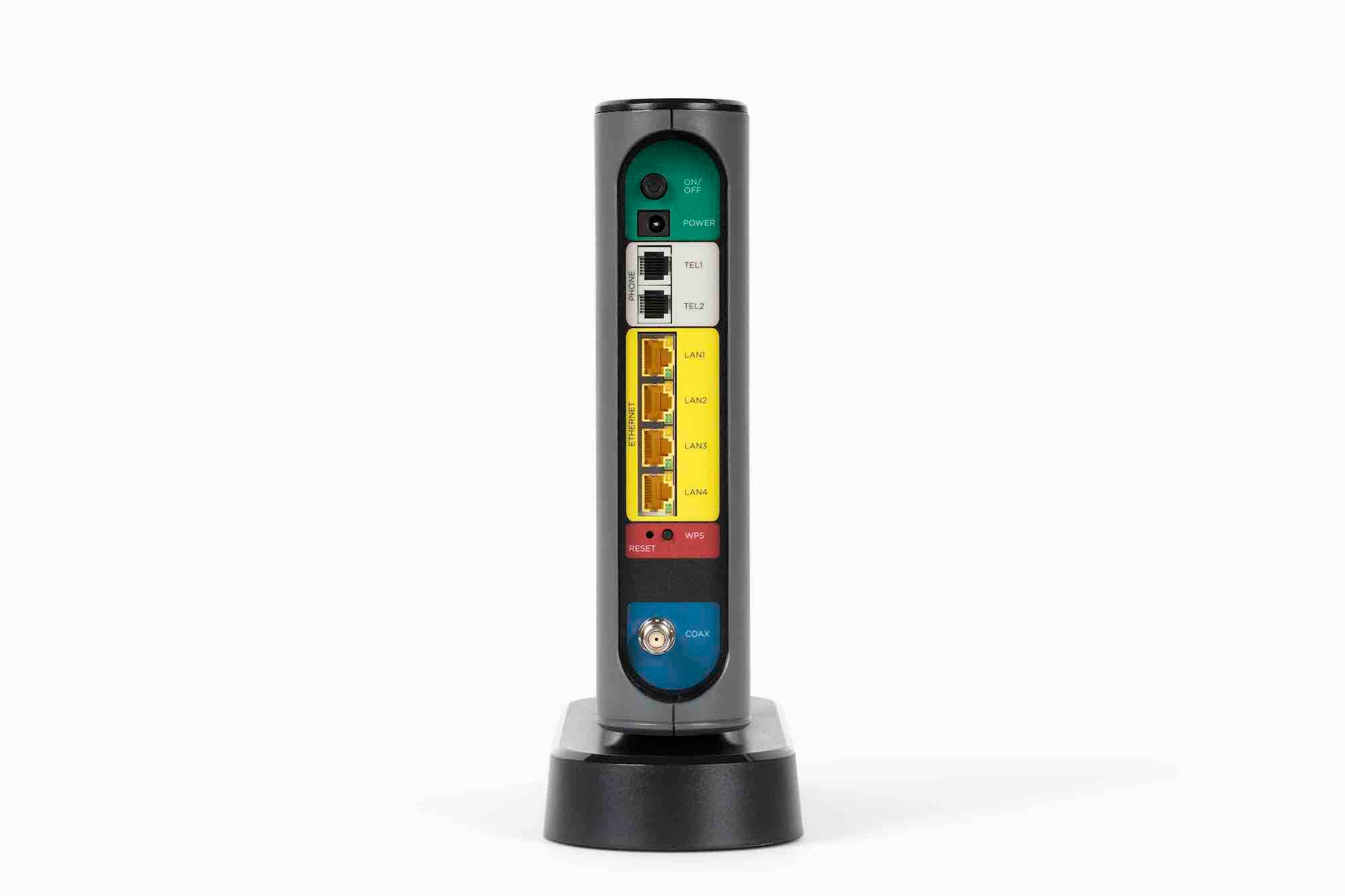

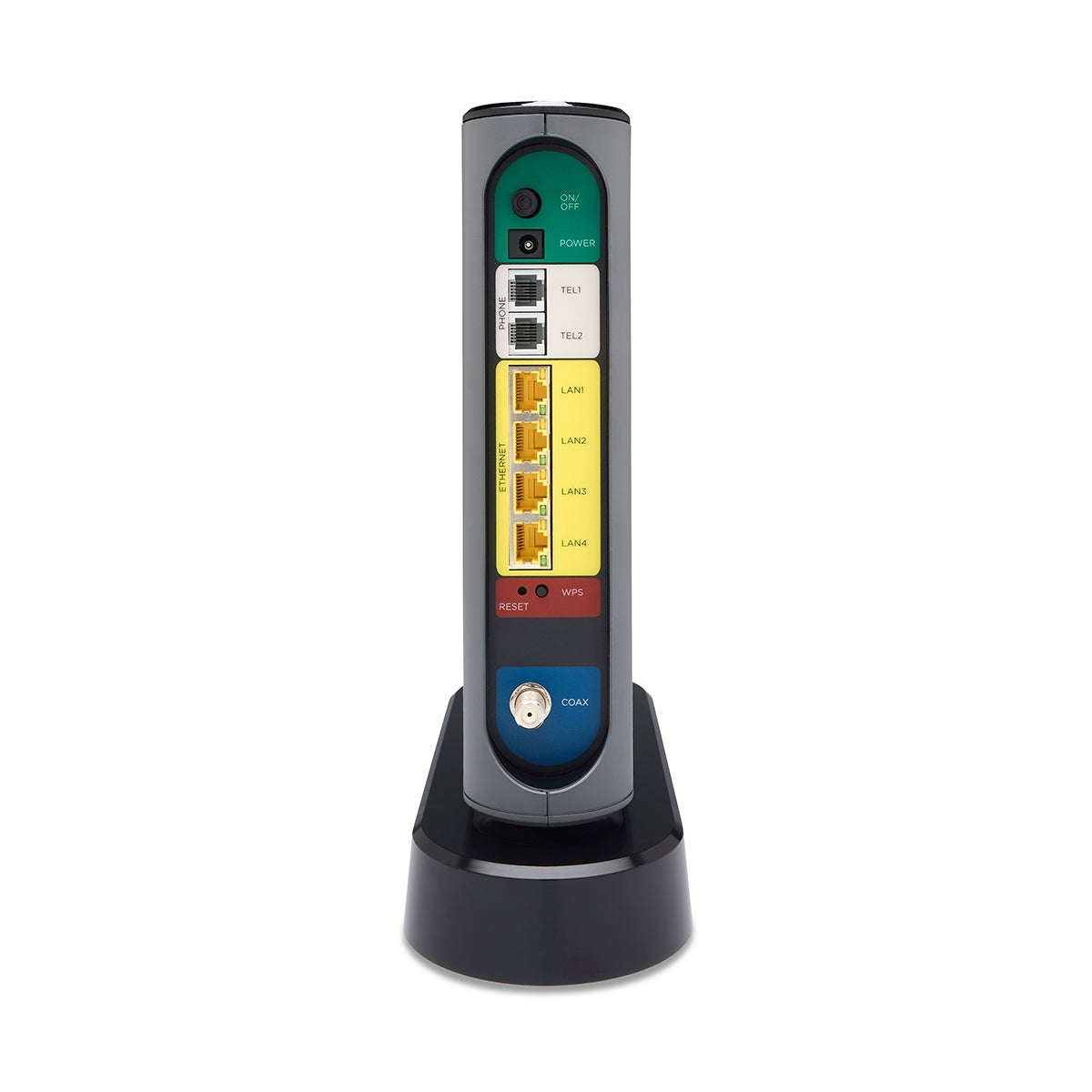

General
Cable Modem Service Interface
- F-type female 75 Ω (standard coaxial connector
Telephony Interface
- Two (2) RJ-11 telephone ports for use with Comcast XFINITY®
- Optional 8-hour battery backup (sold separately)*
- Supports enhanced call features like caller ID, call forwarding, conference calling, and more
WiFi Technology
- 802.11ac/n/g/b/a, 3x3 MIMO (Multiple Input Multiple Output)
WiFi Speed and Performance
- Simultaneous Dual Band radios
- Up to 600 Mbps*** at 2.4 GHz
- Up to 1300 Mbps*** at 5 GHz
- Anybeam at 2.4 GHz and 5 GHz for implicit beamforming with any WiFi compatible device
- Six (6) SSIDs (3 per radio)
Wireless Standards
- IEEE 802.11ac, n, g, b, and a
Antennas
- Three (3) internal dual antennas
- Power Boost wireless amplifiers
- Transmit power:
2.4 GHz: Up to 30dBm
5 GHz: Up to 28dBm
Ethernet Interface
- Four (4) 10/100/1000 Mbps Ethernet LAN ports, with Auto-MDI/MDIX
Router Mode
- Dynamic DNS
- DHCP Server and Client
- NAT
- Bridging
- Port Forwarding/DMZ support
- RIP V1 and V2
- Support for up to 253 client devices
Networking and Security Features
- Stateful Packet Inspection (SPI)
- VPN passthrough: PPTP, IPsec tunneling
- Attack Protection
- IP/MAC/Port filtering
- Denial of Service Notification
- Supports Baseline Encryption (BPI) Management
- Wireless Functions: WMM/WME, guest network
- Wireless Security: WPA-PSK/WPA2-PSK, WPA/WPA2, TKIP/AES, WPS, 802.1x Authentication
- Password protected system management
- Cable modem diagnostic log
LEDs
- Front Panel:
Power, Downstream, Upstream, Online, 2.4 GHz WiFi, 5 GHz WiFi, WPS, Telephone line 1, Telephone line 2, Battery - Rear Panel:
Each Ethernet port has two LEDs indicating data flow and LAN connection speed. Green indicates 1 Gbps; amber indicates 10 or 100 Mbps. Blinking indicates data flow.
Dimensions
- 2 1⁄4" wide x 8 1⁄4" deep x 9" tall (57 mm x 210 mm x 229 mm)
Weight
- 30.4 ounces (862 grams)
Power Adapter
- DoE-compliant Level VI energy-saving, UL-listed power adapter with 12 Volt DC, 4 Amp output and 100-240VAC universal input
- NEMA 1-15 (North American style) 2-prong plug is provided in the US.
Operating Temperature
- 32° to 104° F (0° to 40° C)
Certifications
- FCC 15B, 15C and 15E, FCC MPE, Bureau Veritas 60950-1 ITE safety, CableLabs®, cable service providers
- Click here for additional regulatory compliance information
Surge Protection
- Ruggedized cable and power lightning protection
Warranty
- Two years
System Requirements
- The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards – 3.0, 2.0, 1.1
- Comcast XFINITY’s telephone service is required to use the 2 telephone lines
Package Contents
- Cable Modem with built-in WiFi Router and 2 phone lines
- Power Cube (UL listed)
- Ethernet Cable (Cat 5e)
- Phone Cord
- Quick Start Flyer
Operating Parameters
DOCSIS Standards
- DOCSIS 3.0, 2.0, 1.1
Downstream
- Data Rate: Up to 1029 Mbps***
- Bonded Channels: Up to 24 SCQAM
- Frequency Range: 108 to 1002 MHz
- Modulation: 64 or 256 QAM
- Operating Level Range: -15 to +15 dBmV
Upstream
- Data Rate: Up to 246 Mbps***
- Bonded Channels: Up to 8 SCQAM
- Frequency Range: 5 to 42 MHz
- Modulation: QPSK, 8QAM, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- Operating Level Range:
+61 dBmV (64 QAM, single channel)
+54 dBmV (64QAM, 4-8 channels)
+61 dBmV (16 QAM, single channel)
Network Protocols
- IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP
Application Protocol
- SNMP v1/v2/v3
DHCP Client
- Automatically retrieves IP and DNS server address from DHCP server through WAN connection
ToD (RF868)
- ToD support for local and MSO time synchronization
Management
- Web-based management interface utility
* Optional battery (sold separately) lets you make phone calls even if AC power is lost. Battery lasts at least 8 hours with phones on-hook, at least 5 hours with one phone in use for a call.
** Speeds shown are maximum wireless speeds derived from IEEE Standard 802.11 specifications. Actual speeds will vary.
***1029/246 Mbps is the maximum nominal download/upload speed for 24x8 DOCSIS 3.0 cable modems. Actual speeds depend on a number of factors including the speed of your cable modem service, and will typically be slower.
DOCSIS 3.1
compatible
Supports plans up to 800Mbps
AC1900
WiFi 5 router
2 Telephone Ports
AC1900
WiFi 5 router
2 Phone Ports
Save up to $168/yr* & BOOST PERFORMANCE in 3 easy steps
Step 1
Pick the right cable modem router
- Select the right cable modem router for your internet plan
- Place Order
- Receive in 1-4 business days
Step 2
Install device and connect to your ISP
- Connect your cable modem router to service provider using their app or web page
- Usually takes less than 15 minutes
Step 3
Return rental modem and reduce your monthly bill
- Save up to $25 on your monthly bill
- Customize network without ISP restrictions
MT7711 Cable Modem + Router
For Xfinity Voice
Save big on rental fees*
- Slash your monthly bills:
No More Rental Fees - Long-term investment:
Pays for itself rapidly - Recurring relief:
Say goodbye to constant costs
*Rental fees based at $14/m with Xfinity
Built for fast speeds
- Widely supported:
DOCSIS 3.0 - Strong WiFi 5 Router:
Comes with PowerBoost and Anybeam for fast, reliable connections - Supports plans up to 800Mbps
Certified for Xfinity Voice
- Guaranteed compatibility:
Works with your Xfinity Voice service!!!
2 Devices in
1 modem+router
- Save space and money by combining your modem and router in one unit.
- Setup is simplified with one device to turn your cable internet into WiFi.
POWERED BY motosync
QR code easy install
- Effortless setup using motosync app
- Setup guided at every step
Built in security protection
- 24/7 Scans of your network to detect malware
- Alerts for threats trying to join network
- Option to have isolated guest network
- Included at no extra cost, competitors charge up to $99/yr for similar service
Create a Safe Internet for your kids
- Protect your child from dangerous websites
- Restrict specific websites
- Monitor and limit Internet usage
- Included at no charge
Ultimate support
- 2-year warranty
- Unlimited Customer Support
Motorola DOCSIS 3.0 Cable Modem + WiFi 5 Router with 2 Phone Lines for Xfinity Voice, 840 Mbps Speed | mt7711
What's included
Everything you need to turn your cable into high speed internet connection.
- 2x Q14 WiFi Router (2-Pack) or 3x Q14 WiFi Router (3-Pack)
- Power adapter
- Ethernet Cable
- Quickstart Guide
