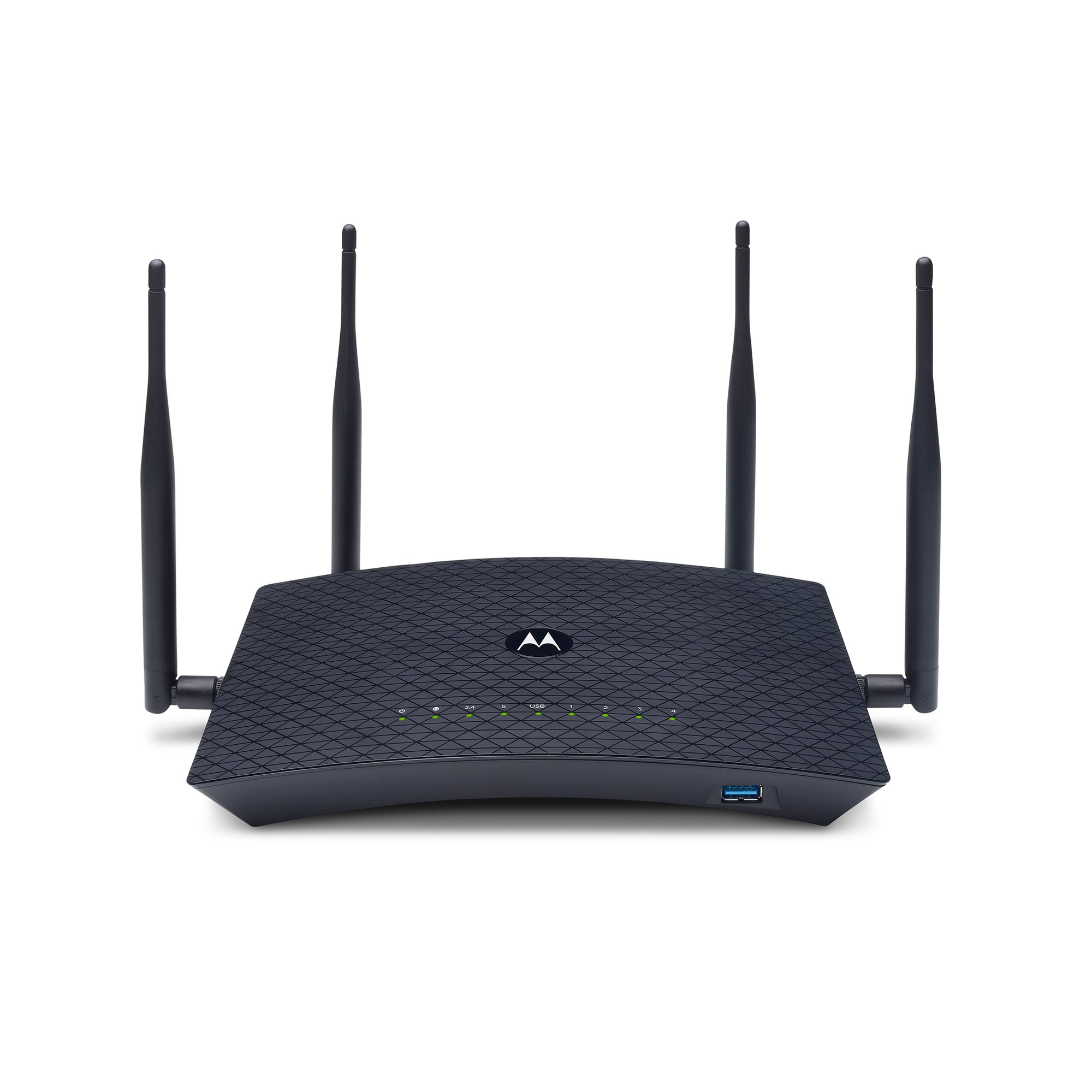

mr2600 | WiFi 5 Router, 2.6 Gbps speed

WiFi Technology

• 802.11ac/n/g/a, 4x4 MU-MIMO (Multi-user Multiple Input Multiple Output)

WiFi Speed and Performance

• Simultaneous 4-stream (4x4) dual-band
• MU-MIMO for simultaneous data streams with compatible 802.11ac WiFi devices
• Up to 800 Mbps* at 2.4 GHz
• Up to 1733 Mbps* at 5 GHz
• Implicit and explicit beamforming at both 2.4 GHz and 5 GHz

Wireless Standards

• IEEE 802.11 ac, n, g, and a

Antennas

• Four (4) adjustable, removable external dual-band antennas
• Transmit power:
  2.4 GHz: Up to 30dBm 5 GHz: Up to 30dBm

Ethernet Interface

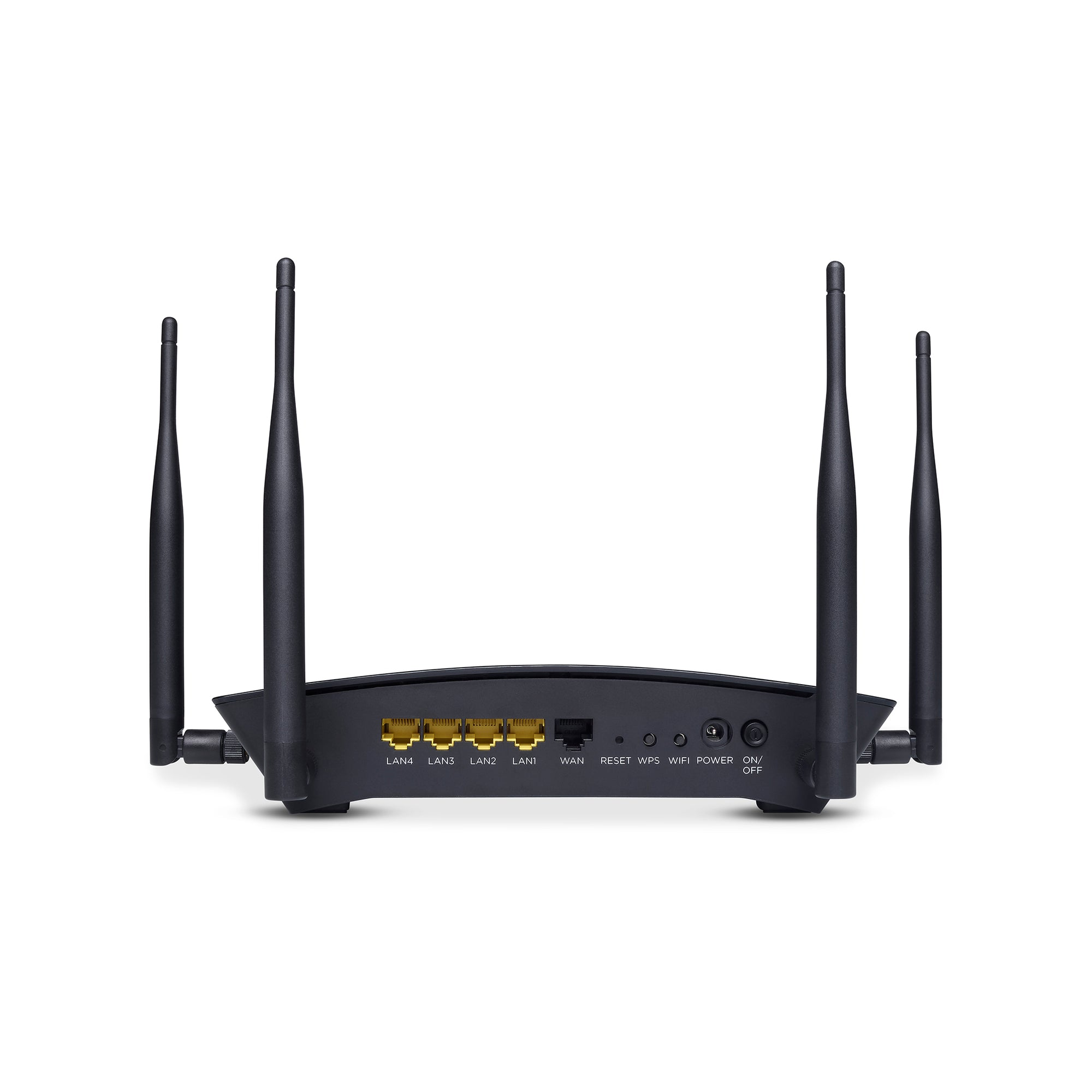

• 10/100/1000 Mbps Ethernet ports (4 LAN and 1 WAN), with Auto-MDI/MDIX

USB Interface

• One (1) USB 3.0 port with DLNA/NAS (Digital Living Network Alliance/Network Attached Storage) support

Networking and Security Features

• Dynamic DNS
• DHCP Server
• Support for up to 253 client devices
• IPv4 and IPv6 network addressing
• SPI and NAT double firewall protection
• DoS (Denial of Service) attack protection
• Port Forwarding/DMZ support
• VPN passthrough: PPTP, L2TP, IPsec tunneling
• Parental Control
• Wireless Functions: Guest Network, WMM, WPS
• Wireless Security: WPA-PSK/WPA2-PSK
• SmartQoS
• Password protected system management
• Diagnostic log

• Dual-core

Management

• Web-based management interface

LEDs

• Power, Online, 2.4 GHz WiFi, 5 GHz WiFi, USB, LAN1-4

Dimensions

• Not including antennas:
  9.25" wide x 6.0625" deep x 2" tall
  (235 mm x 154 mm x 51 mm)
• Including antennas:
  12" wide x 7.0625" deep x 7.125" tall
  (305 mm x 179 mm x 181 mm)

Weight

• 20.8 ounces (589.7 grams)

Power Adapter

• Energy-efficient 12 Volt, 2 Amp power adapter with superior surge protection and 100-240VAC universal input
• Adapter style provided:
  – US (SKU # MR2600-10): 2-prong UL-listed NEMA 1-15 Type A
  – UK (SKU # MR2600-72): 3-prong CE-certified BS1363 Type G
  – EU (SKU # MR2600-70): 2-prong CE-certified Euro plug Type C

Operating Temperature

• 32° to 104° F (0° to 40° C)

Certifications

• FCC 15B, 15C, 15E, and MPE, CE, Bureau Veritas 60950-1 ITE safety

Warranty

• Two years

System Requirements

• Internet access requires connection to a broadband modem, either directly or through a local area network.
• Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port.
• Devices connected wirelessly must have wireless ac, n, a, g, or b capability.

Package Contents

• AC2600 WiFi Gigabit Router
• Power Cube
• Ethernet Cable
• Quick Start Flyer
