Mg7550 | 560Mbps DOCSIS 3.0 Cable Modem + WiFi 5 Router

"This is the strongest most reliable modem I have ever owned. Wireless signal allows us to go wherever in the house we choose or outside."

Mg7550 | 560Mbps DOCSIS 3.0 Cable Modem + WiFi 5 Router

Speeds up to 560Mbps, WiFi 5 router
Save up to $168* per year vs renting
2 year warranty, Unlimited Support

*Note, item is 33% off and cannot be combined with other promotions.

$69.99 $149.99 saving $80.00

Speeds up to 560Mbps, WiFi 5 router
Save up to $168* per year vs renting
2 year warranty, Unlimited Support

*Note, item is 33% off and cannot be combined with other promotions.

"This is the strongest most reliable modem I have ever owned. Wireless signal allows us to go wherever in the house we choose or outside."

Quantity

Description
Tech Specs

high-speed DOCSIS 3.0 performance

Features four 1 Gigabit Ethernet ports for wired connections. Full-Band Capture technology maximizes speed while reducing power consumption.

powerful AC1900 3x3 router

Power Boost™ and AnyBeam WiFi beamforming amplify the available WiFi signal for fast, reliable connections.

fast Internet speed

Enjoy faster downloads, better gaming, and seamless remote working with speeds up to 560 Mbps.

extreme cost savings

Save up to $168 per year on modem rental fees with your internet provider.

easy and reliable

Comes with a 2-year warranty and free support from our team of US-based technicians.

motosync app

It's like having our product experts in your home with one tap using in-app live chat support.

*Coupon codes not valid with listing as discount is already applied
General

Cable Modem Service Interface
- F-type female 75 Ω (standard coaxial connector)
Ethernet LAN Interface
- 4 X RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX
Wireless
- 802.11ac/n/g/b/a, 3x3 MIMO (Multiple Input Multiple Output)
Router Mode
- Dynamic DNS
- DHCP Server and Client
- NAT
- Bridging
- Port Forwarding/DMZ support
- RIP V1 and V2
- Support for up to 253 client devices
Security
- Stateful Packet Inspection (SPI)
- VPN passthrough: PPTP, IPsec tunneling
- Parental Control
- Attack Protection
- IP/MAC/Port filtering
- Denial of Service Notification
- Password protected system management
- Cable modem diagnostic log
Wireless Networking and Security:
- Compliant with IEEE 802.11ac, n, a, g, and b standards
- Up to 600 Mbps* at 2.4 GHz
- Up to 1300 Mbps* at 5 GHz
- Simultaneous Dual Band radios
- WDS
- WMM/WME
- WPA-PSK/WPA2-PSK
- WPA/WPA2
- WEP-64/128
- TKIP/AES
- WPS
- 802.1x Authentication
- 6 SSIDs (3 per radio)
- Wireless Quality of Service
- Transmit power: 20dBm
- Three internal dual band antennas
- Power Boost wireless amplifiers
- AnyBeam at 2.4 GHz and 5 GHz for implicit beamforming with any Wi-Fi compatible device
- DFS (Dynamic Frequency Selection) allows the device to use frequencies that are generally reserved for radar when those are available
Status Indicators

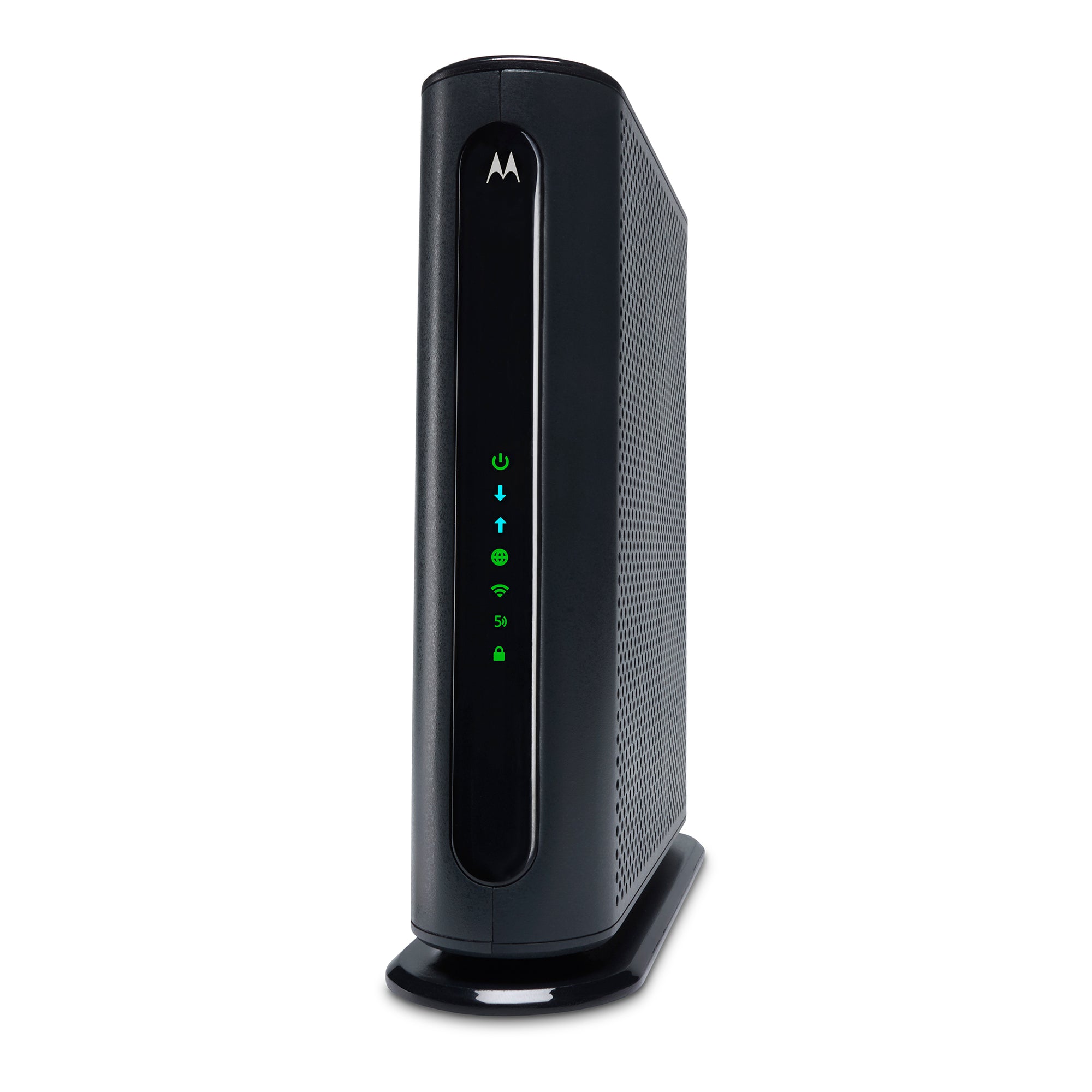

- Front panel:
  Power, Downstream link, Upstream link, Connection status, 2.4 GHz Wireless link, 5 GHz Wireless link, WPS

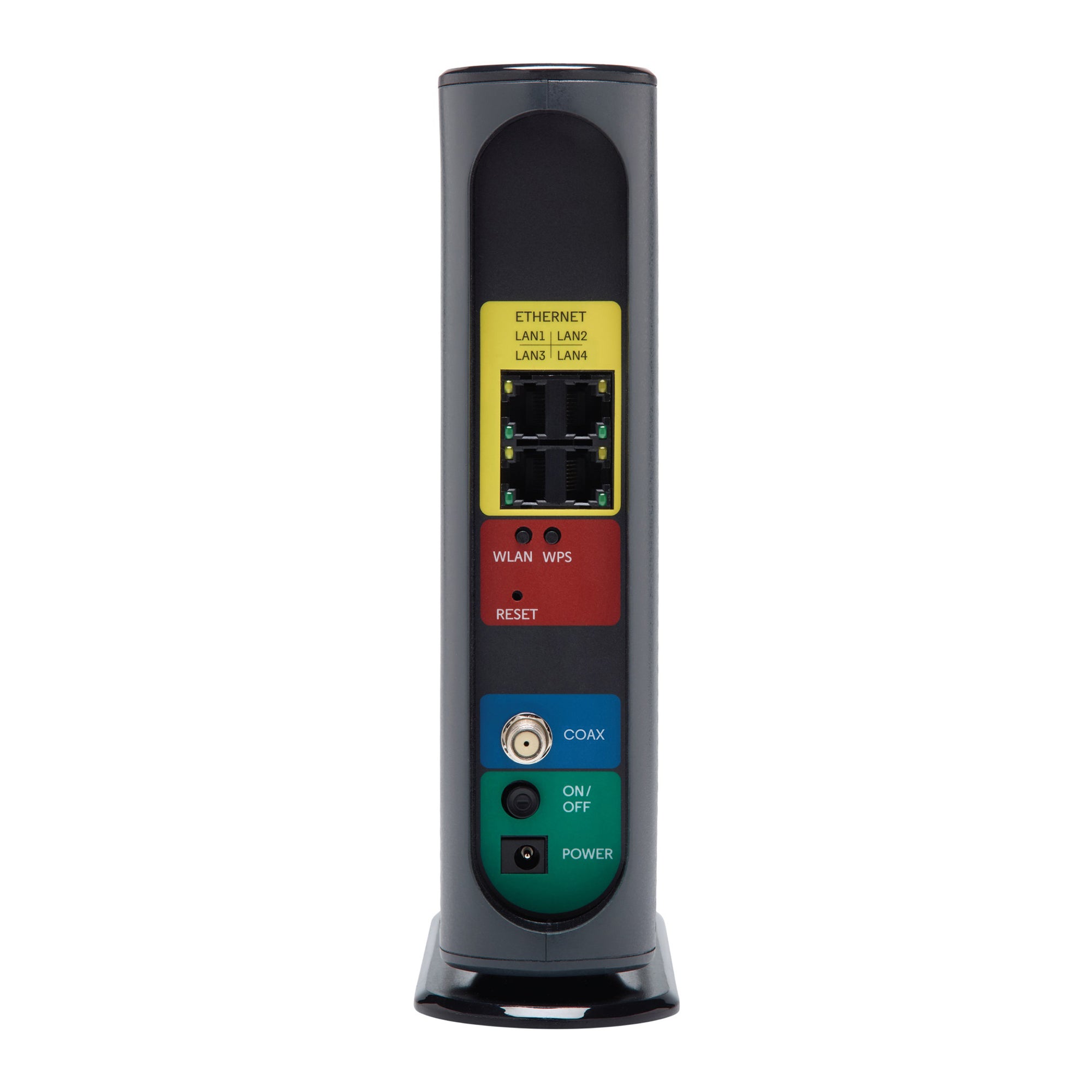

- Back panel:
  Each Ethernet port has two LEDs indicating data flow and LAN connection speed.
  Green indicates 1 Gigabit; amber indicates 10 or 100 Mbps. Blinking indicates data flow.
Size
- 2 1⁄2" wide by 8 1⁄2" deep by 9" tall
  (63.5mm 216mm x 229mm)
Weight
- 23.6 ounces (669 grams)
Power Adapter:
- DoE-compliant Level VI energy-saving, UL-listed power adapter with 12 Volt DC, 2.5 Amp output and 100-240VAC universal input.
- NEMA 1-15 (North American style) 2-prong plug is provided in the US.
Operating Temperature
- 32° to 104° F (0° to 40° C)
Certifications
- FCC 15B and 15C, FCC MPE, Bureau Veritas 60950-1 ITE safety, Wi-Fi Alliance®, CableLabs®, cable service providers
Surge Protection
- Ruggedized cable and power lightning protection
Warranty
- Two years
Operating Parameters

Downstream
- Data Rate*:
  Up to 686 Mbps (16 channels)
  Up to 43 Mbps (single channel)
- Frequency:
  88 to 1002 MHz (edge to edge)
- Modulation:
  64 or 256 QAM
- Operating Level Range:
  -15 to +15 dBmV
Upstream
- Data Rate*:
  Up to 123 Mbps (4 channels)
  Up to 31 Mbps (single channel)
- Frequency:
  5 to 42 MHz (edge to edge)
- Modulation:
  QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM, 256QAM
- Operating Level Range:
  A-TDMA:
  +8 to +54 dBmV (32QAM, 64QAM)
  +8 to +58 dBmV (QPSK)
  S-CDMA:
  +8 to +53 dBmV (all modulations)
Security
- DOCSIS 3.0 Security (BPI+, EAE, SSD)
Network Protocols
- IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP
Application Protocol
- SNMP v1/v2/v3
DHCP Client
- Automatically retrieves IP and DNS server address from DHCP server at ISP
ToD (RF868)
- ToD support for local and MSO time synchronization
TFTP Client
- TFTP support for cable modem configuration file download
Management
- Web-based management interface utility
Core Chipset
- Broadcom BCM33843G/li>
System Requirements
- The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards – 3.0, 2.0, 1.1.
- Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port.
- Devices connected wirelessly must have wireless ac, n, a, g, or b capability.
- The supplied power cube plugs into the most common USA power outlet.
Package Contents
- Cable Modem with built-in Wi-Fi Router
- Power Cube
- Ethernet Cable
- Quick Start Flyer
* Data throughput will be reduced by network overhead. Delivered data speeds are also dependent upon the configuration and capacity of the data-over-cable service on which the MG7550 is used.

** Speeds shown are maximum wireless speeds derived from IEEE Standard 802.11 specifications. Actual speeds will vary.

DOCSIS 3.0
compatible

Supports plans up to 500Mbps

AC1900
WiFi 5 router

No Telephone Port

See Telephone Port model

AC1900 WiFi 5

No Phone Port

See Phone model

General

Cable Modem Service Interface

F-type female 75 Ω standard coaxial connector

Ethernet LAN Interface

4 X RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX

Wireless

802.11ac/n/g/b/a, 3x3 MIMO (Multiple Input Multiple Output)

Router Mode

Dynamic DNS
DHCP Server and Client
NAT
Bridging
Port Forwarding/DMZ support
RIP V1 and V2
Support for up to 253 client devices

Security

Stateful Packet Inspection (SPI)
VPN passthrough: PPTP, IPsec tunneling
Parental Control
Attack Protection
IP/MAC/Port filtering
Denial of Service Notification
Password protected system management
Cable modem diagnostic log

Wireless Networking and Security

Compliant with IEEE 802.11ac, n, g, b, and a standards
Up to 600 Mbps** at 2.4 GHz
Up to 1300 Mbps** at 5.0 GHz
Simultaneous Dual Band radios
WDS
WMM/WME
WPA-PSK/WPA2-PSK
WPA/WPA2
WEP-64/128
TKIP/AES
WPS
802.1x Authentication
6 SSIDs (3 per radio)
Wireless Quality of Service
Transmit power: 20dBm
Three internal dual band antennas
AnyBeam at 2.4 GHz and 5 GHz for implicit beamforming with any Wi-Fi compatible device
DFS (Dynamic Frequency Selection) allows the device to use frequencies that are generally reserved for radar when those are available

Status Indicators

Front panel:
Power, Downstream link, Upstream link, Connection status, 2.4 GHz Wireless link, 5 GHz Wireless link, WPS
Back panel:
Each Ethernet port has two LEDs indicating data flow and LAN connection speed.
Green indicates 1 Gigabit; amber indicates 10 or 100 Mbps. Blinking indicates data flow.

Size

2 1⁄2" wide by 8 1⁄2" deep by 9" tall
(63.5mm 216mm x 229mm)

Weight

23.6 ounces (669 grams)

Power Adapter

DoE-compliant Level VI energy-saving, UL-listed power adapter with 12 Volt DC, 2.5 Amp output and 100-240VAC universal input.
NEMA 1-15 (North American style) 2-prong plug is provided in the US.

Operating Temperature

32° to 104° F (0° to 40° C)

Certifications

FCC 15B and 15C, FCC MPE, Bureau Veritas 60950-1 ITE safety, Wi-Fi Alliance®, CableLabs®, cable service providers

Surge Protection

Ruggedized cable and power lightning protection

Warranty

Two years

OPERATING PARAMETERS

Downstream

Data Rate*:
Up to 686 Mbps (16 channels)
Up to 43 Mbps (single channel)
Frequency:
88 to 1002 MHz (edge to edge)
Modulation:
64 or 256 QAM
Operating Level Range:
-15 to +15 dBmV

Upstream

Data Rate*:
Up to 123 Mbps (4 channels)
Up to 31 Mbps (single channel)
Frequency:
5 to 42 MHz (edge to edge)
Modulation:
QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM, 256QAM
Operating Level Range:
A-TDMA:
+8 to +54 dBmV (32QAM, 64QAM)
+8 to +58 dBmV (QPSK)
S-CDMA:
+8 to +53 dBmV (all modulations)

Security

DOCSIS 3.0 Security (BPI+, EAE, SSD)

Network Protocols

IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP

Application Protocol

SNMP v1/v2/v3

DHCP Client

Automatically retrieves IP and DNS server address from DHCP server at ISP

ToD (RF868)

ToD support for local and MSO time synchronization

TFTP Client

TFTP support for cable modem configuration file download

Managment

Web-based management interface utility

Core Chipset

Broadcom BCM33843G

System Requirements

The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards – 3.0, 2.0, 1.1.
Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port.
Devices connected wirelessly must have wireless ac, n, a, g, or b capability.
The supplied power cube plugs into the most common USA power outlet.

Package Contents

Cable Modem with built-in Wi-Fi Router
Power Cube
Ethernet Cable
Quick Start Flyer

* Data throughput will be reduced by network overhead. Delivered data speeds are also dependent upon the configuration and capacity of the data-over-cable service on which the MG7550 is used.

** Speeds shown are maximum wireless speeds derived from IEEE Standard 802.11 specifications. Actual speeds will vary.
