mg7540 | 550Mbps DOCSIS 3.0 Cable Modem + WiFi 5 Router

General

Cable Modem Service Interface

• F-type female 75 Ω standard coaxial connector

Ethernet LAN Interface

• 4 X RJ-45 10/100/1000 Mbps Ethernet, with Auto-MDI/MDIX

Wireless

• 802.11ac/n/g/b/a
• 2.4 GHz 2x2 MIMO (Multiple Input Multiple Output)
• 5.0 GHz 3x3 MIMO

Router Mode

• Dynamic DNS
• DHCP Server and Client
• NAT
• Bridging
• Port Forwarding/DMZ support
• RIP V1 and V2
• Support for up to 253 client devices

Security

• Stateful Packet Inspection (SPI)
• VPN passthrough: PPTP, IPsec tunneling
• Parental Control
• Attack Protection
• Password protected system management
• IP/MAC/Port filtering
• Denial of Service Notification
• Wireless MAC address filtering
• Supports Baseline Encryption (BPI) Management
• Cable modem diagnostic log

Wireless Networking and Security

• Compliant with IEEE 802.11ac, n, g, b, and a standards
• Up to 300 Mbps** at 2.4 GHz
• Up to 1300 Mbps** at 5.0 GHz
• Simultaneous Dual Band radios
• WDS
• WMM/WME
• WPA-PSK/WPA2-PSK
• WPA/WPA2
• TKIP/AES
• WPS
• 802.1x Authentication
• 6 SSIDs (3 per radio)
• Wireless Quality of Service
• Transmit power: 20dBm
• Three internal dual band antennas
• AnyBeam at 5.0 GHz for implicit beamforming with Wi-Fi devices that support 5.0 GHz

Status Indicators

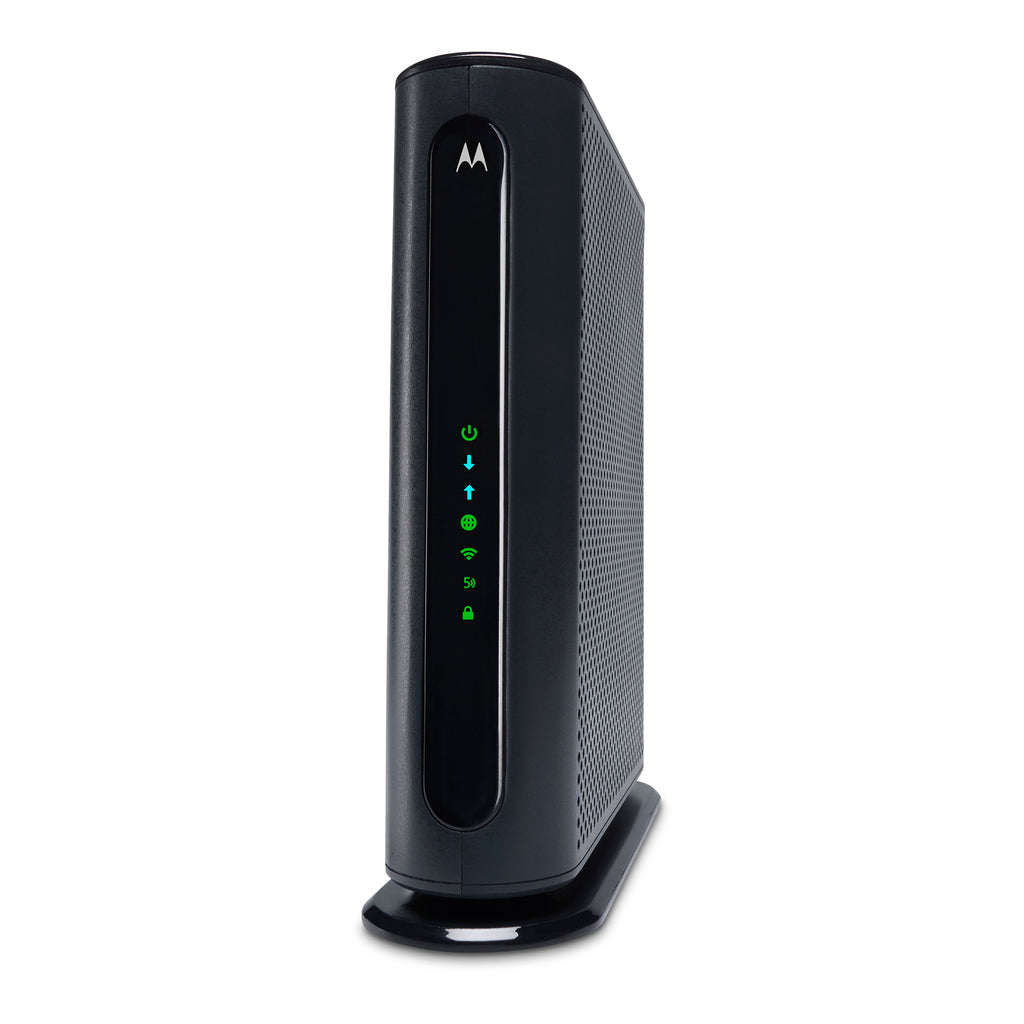

• Front panel:
  Power, Downstream link, Upstream link, Connection status, 2.4 GHz Wireless link, 5.0 GHz Wireless link, WPS

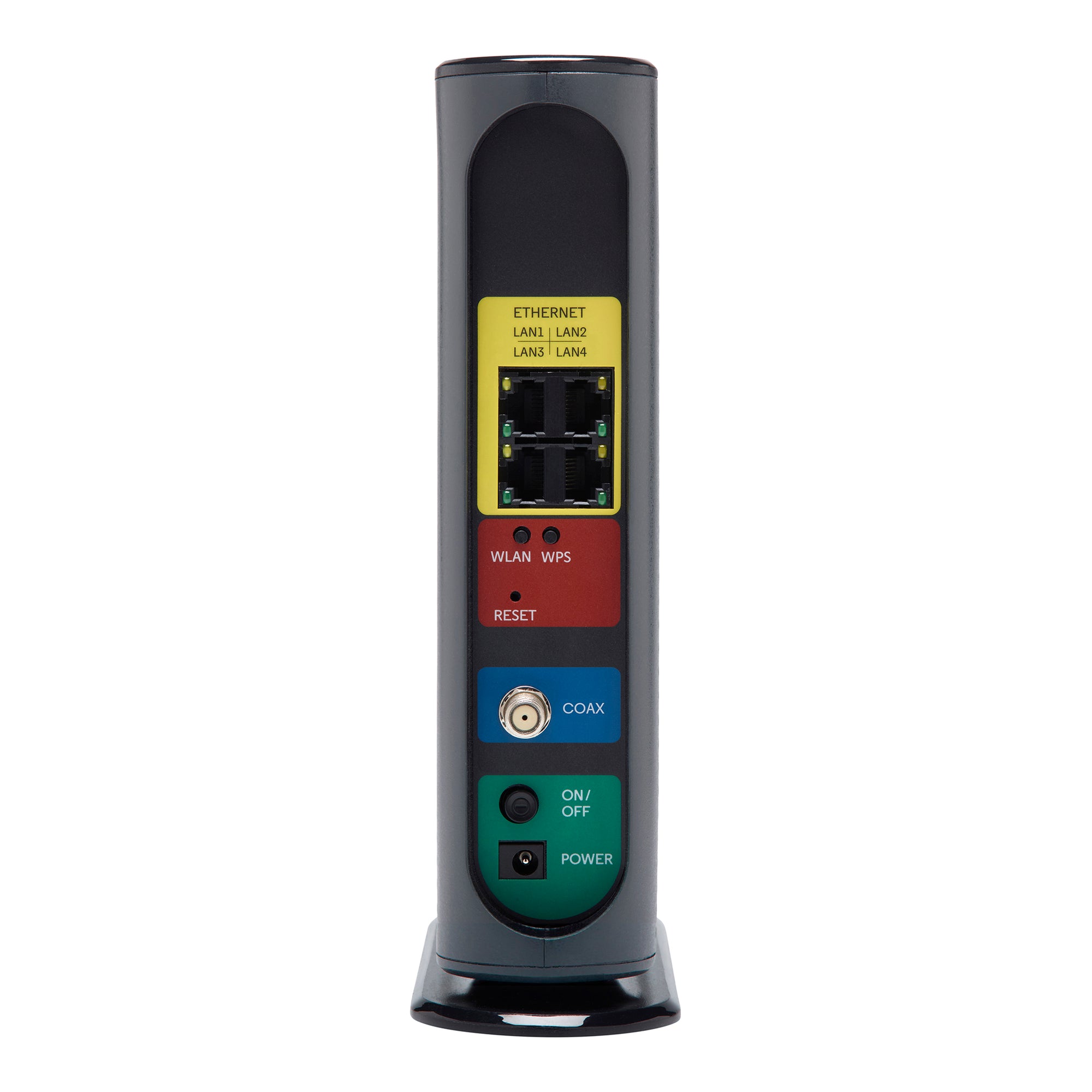

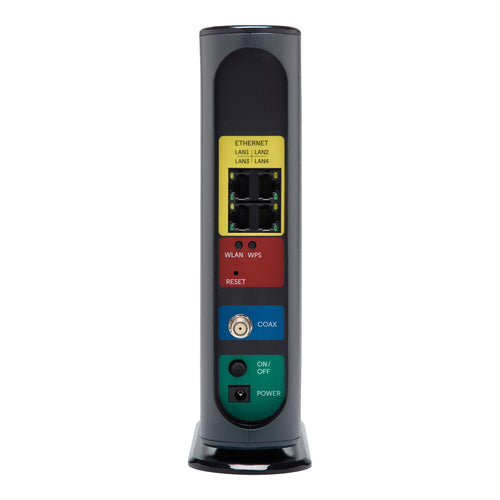

• Back panel:
  Each Ethernet port has two LEDs indicating data flow and LAN connection speed.
  Green indicates 1 Gigabit; amber indicates 10 or 100 Mbps. Blinking indicates data flow.

Size

• 2 1⁄2" wide by 8 1⁄2" deep by 9" tall
  (63.5mm 216mm x 229mm)

Weight

• 23 ounces (652 grams)

Power Adapter

• DoE-compliant Level VI energy-saving, UL-listed power adapter with 12 Volt DC, 2 Amp output and 100-240VAC universal input.
• NEMA 1-15 (North American style) 2-prong plug is provided in the US.

Operating Temperature

• 32° to 104° F (0° to 40° C)

Certifications

• FCC 15B and 15C, FCC MPE, Bureau Veritas 60950-1 ITE safety, Wi-Fi Alliance®, CableLabs®, cable service providers

Surge Protection

• Industrial-level surge & lightning protection

Warranty

• Two years

OPERATING PARAMETERS

Downstream

• Data Rate*:
  Up to 686 Mbps (16 channels)
  Up to 43 Mbps (single channel)
• Frequency:
  88 to 1002 MHz (edge to edge)
• Modulation:
  64 or 256 QAM
• Operating Level Range:
  -15 to +15 dBmV

Upstream

• Data Rate*:
  Up to 123 Mbps (4 channels)Up to 31 Mbps (single channel)
• Frequency:
  5 to 42 MHz (edge to edge)
• Modulation:
  QPSK, 8QAM, 16QAM, 32QAM, 64QAM,128QAM, 256QAM
• Operating Level Range:
  A-TDMA:
  +8 to +54 dBmV (32QAM, 64QAM)
  +8 to +58 dBmV (QPSK)
  S-CDMA:
  +8 to +53 dBmV (all modulations)

Security

• DOCSIS 3.0 Security (BPI+, EAE, SSD)

Network Protocols

• IPv4, IPv6, TCP, UDP, ARP, ICMP, DHCP, FTP, TFTP, SNMP, HTTP, HTTPS

Application Protocol

• SNMP v1/v2/v3

DHCP Client

• Automatically retrieves IP and DNS server address from DHCP server at ISP

ToD (RF868)

• ToD support for local and MSO time synchronization

TFTP Client

• TFTP support for cable modem configuration file download

Managment

• Web-based management interface utility

Core Chipset

• Broadcom BCM33843G

System Requirements

• The cable modem must be connected to a cable modem service that uses any of the DOCSIS standards – 3.0, 2.0, 1.1.
• Directly connected devices, such as computers, HDTVs, and game stations, must have an Ethernet port.
• Devices connected wirelessly must have wireless ac, n, a, g, or b capability.
• The supplied power cube plugs into the most common USA power outlet.

Package Contents

• Cable Modem with built-in Wi-Fi Router
• Power Cube
• Ethernet Cable
• Quick Start Flyer

* Data throughput will be reduced by network overhead. Delivered data speeds are also dependent upon the configuration and capacity of the data-over-cable service on which the MG7540 is used.

** Speeds shown are maximum wireless speeds derived from IEEE Standard 802.11 specifications. Actual speeds will vary.
