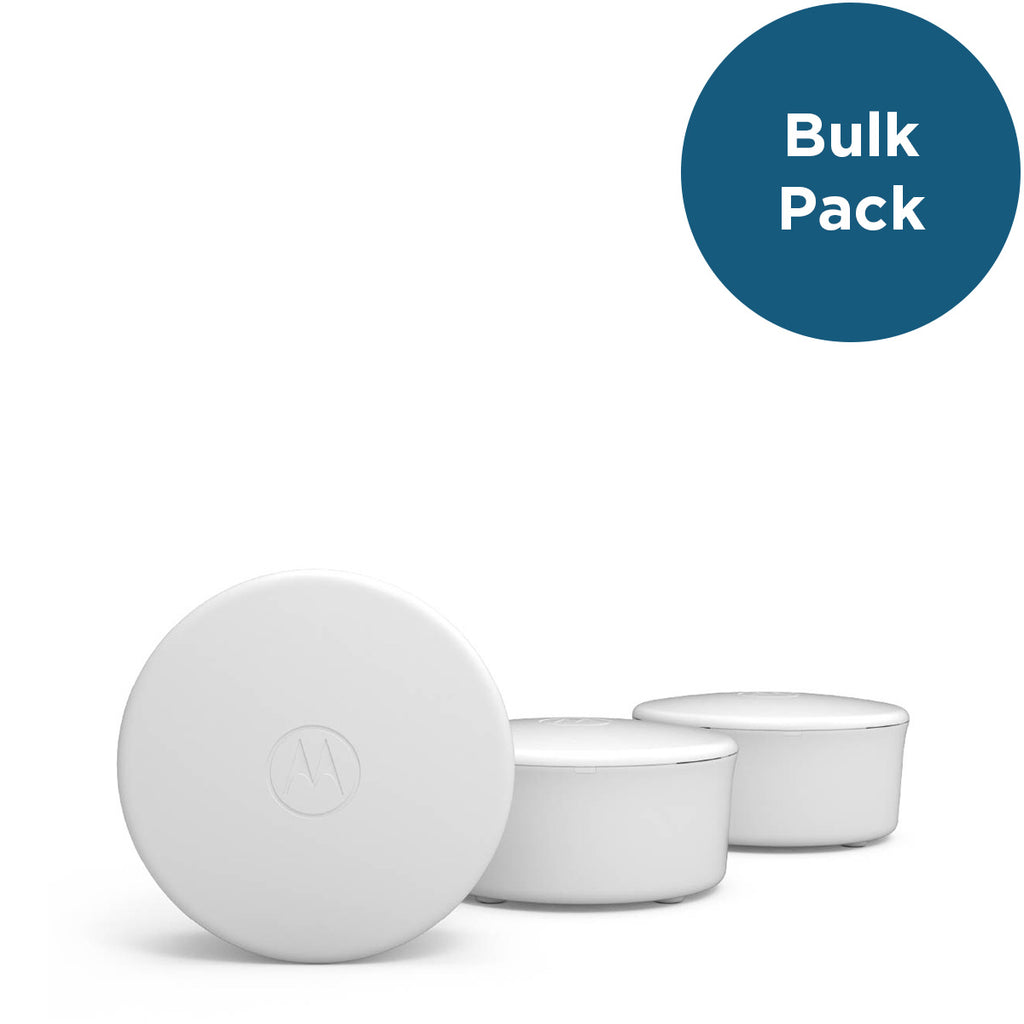

Motorola Dual-Band Mesh WiFi 6 System | 1 Router + 2 Satellites | mh7603 (5 count bulk pack)
Motorola Dual-Band Mesh WiFi 6 System | 1 Router + 2 Satellites | mh7603 (5 count bulk pack)
- Description
- Tech Specs
-

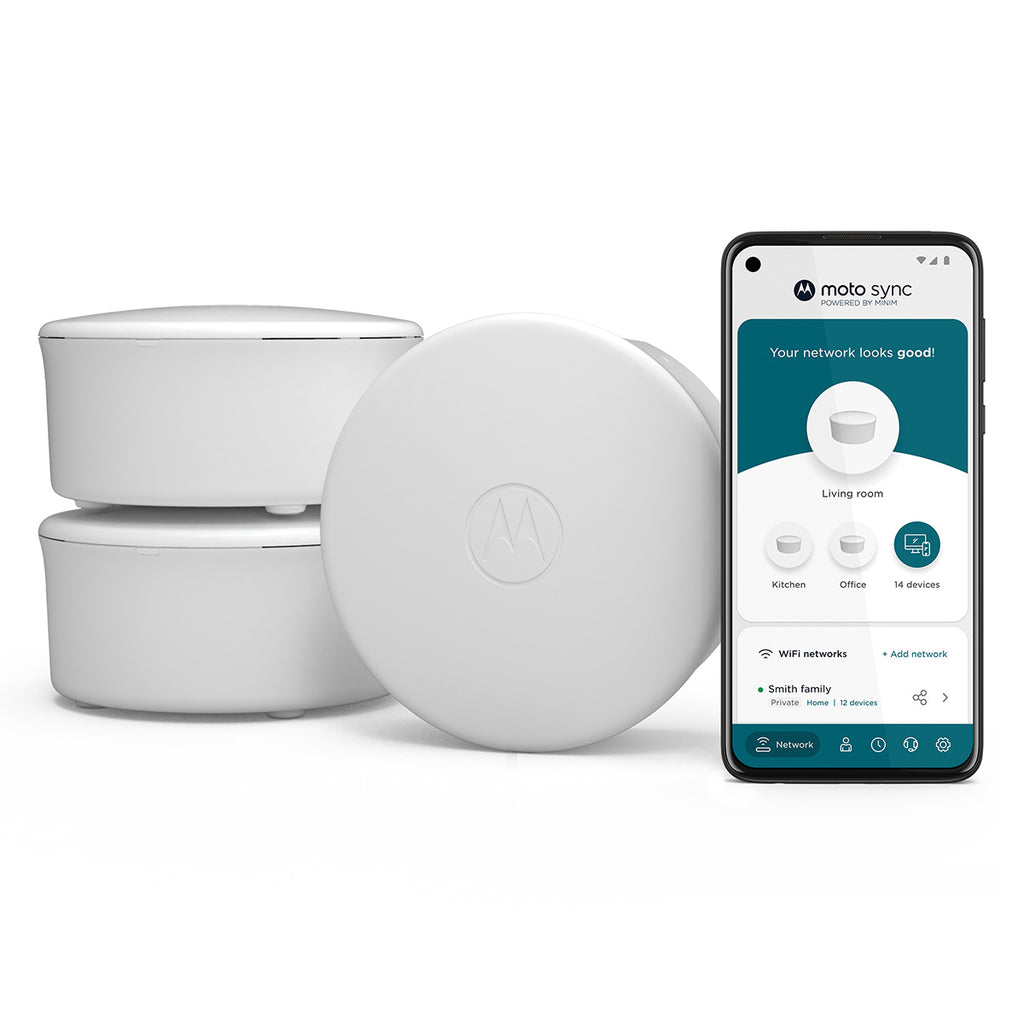

MH7603 includes 1 router and 2 extenders for WiFi 6 coverage up to 5,000 sqft.
true Gigabit speed
Blazing-fast AX1800 speeds up to 1 Gigabit for over 100 devices with next-generation WiFi 6 technology.
no more buffering
Delivers fast, consistent WiFi to all your devices for uninterrupted streaming, gaming, and video conferencing. Features two 1 Gigabit Ethernet ports for fast wired connections.
expandable mesh coverage
No more dead zones and dropped connections. Blanket your whole home in reliable WiFi coverage up to 3,500 sqft.
powerful app with parental controls
Easily set up and manage your WiFi with the motosync app. Share guest network, run speed tests, track data usage, and more. Create family profiles to filter content, set time limits, and monitor usage.
auto security and privacy
Keep your network and data safe with advanced security, including: auto firmware upgrades, malware scans, new device alerts, and adblocking.
tons of support
Comes with a 2-year warranty and free support from our US-based technicians.
-
PER DEVICE
WiFi Specs
- AX1800 Dual Band WiFi 6
- Two (2) internal dual-band antennas
- IEEE 802.11 a/b/g/n/ac/ax, 2x2 MU-MIMO
- WiFi 6 Performance (OFDMA, Beamforming, Power Boost, 1024-QAM)
- Transmit power: up to 30 dBm
- Smart Mesh 2.0
- Speed:
- Up to 574 Mbps** at 2.4 GHz
- Up to 1200 Mbps** at 5.0 GHz
- Coverage:
- MH7601: 2000 sqft.*
- MH7602: 3500 sqft.*
- MH7603: 5000 sqft.*
- Guest network support
Device Management
- Band Steering
- Seamless AP Roaming
- Wireless Airtime Fairness (ATF)
- Smart Backhaul
Network Management
- Optimized WiFi Channel Selection
- WPA/WPA2, TKIP/AES wireless security
- 64 client devices per WiFi band; up to 245 total client devices
- Firewall with DoS Attack Protection, SPI
Physical interface
- Router:
- One (1) 10/100/1000 Gig Ethernet LAN port
- One (1) 10/100/1000 Gig Ethernet WAN port
- Extender:
- Two (2) 10/100/1000 Gig Ethernet LAN ports
- USB-C Power Input Port
- Reset button
- Front Status LED: Power, WiFi, Internet
- Dimensions: 2.6” H x 5” D x 5” W
- Weight: 10.6 oz
- Ruggedized 4 kV surge protection
Accessories
- USB-C 5V, 15W AC Adapter
- White 1.5m Ethernet Cable
- Quickstart Guide
-
motosync app
Certifications
- FCC part 15B, 15C, and 15E, FCC MPE, UL 62368 and NRTL safety mark, RoHS, California Prop 65

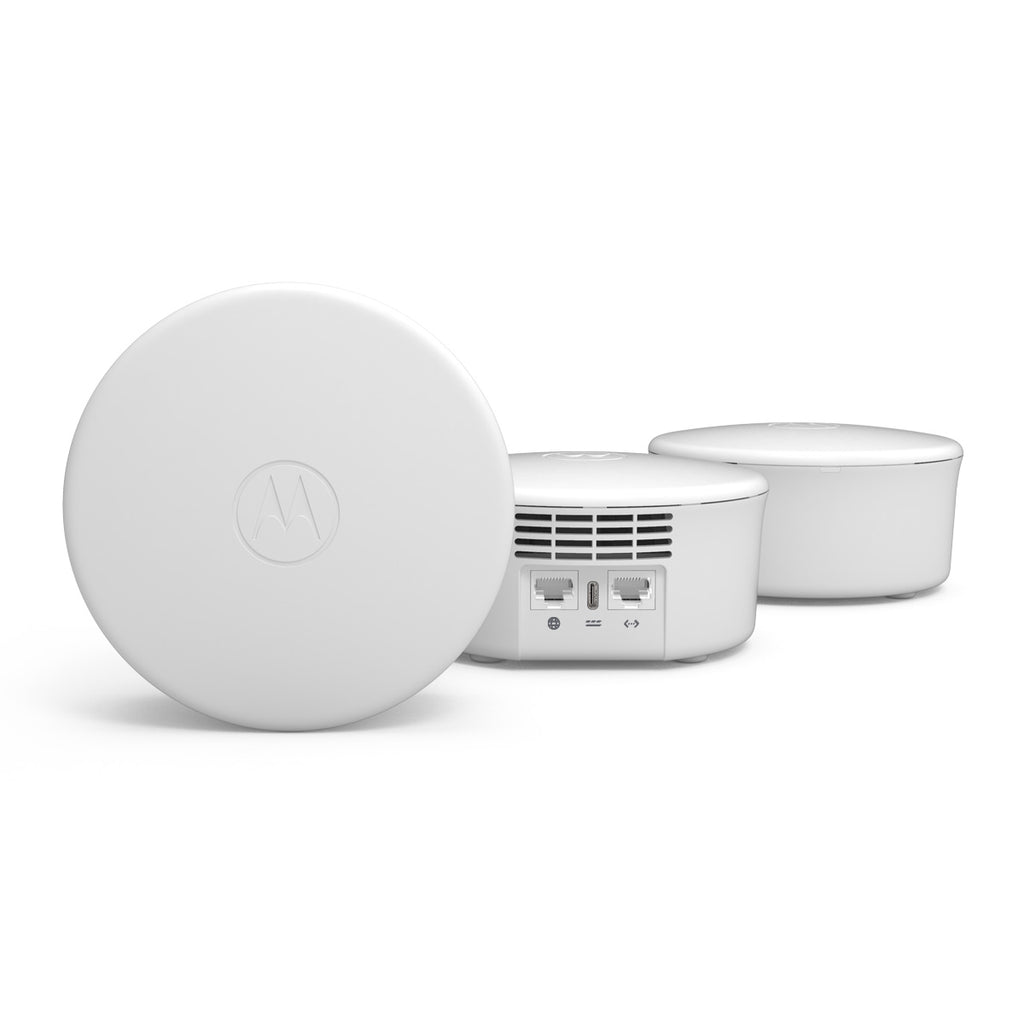

MH7601 Buttons and Ports
WAN/LAN Port
- For the router, connect the ethernet cable from this port to your internet device
- For an extender, this port can be used as a second LAN port to connect wired devices.
USB-C Power
- Connect the supplied USB-C 5V 15W AC Adapter
LAN Port
- LAN port to connect wired devices
